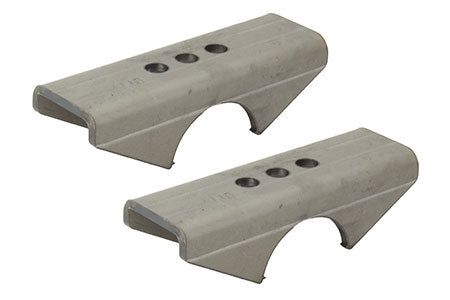

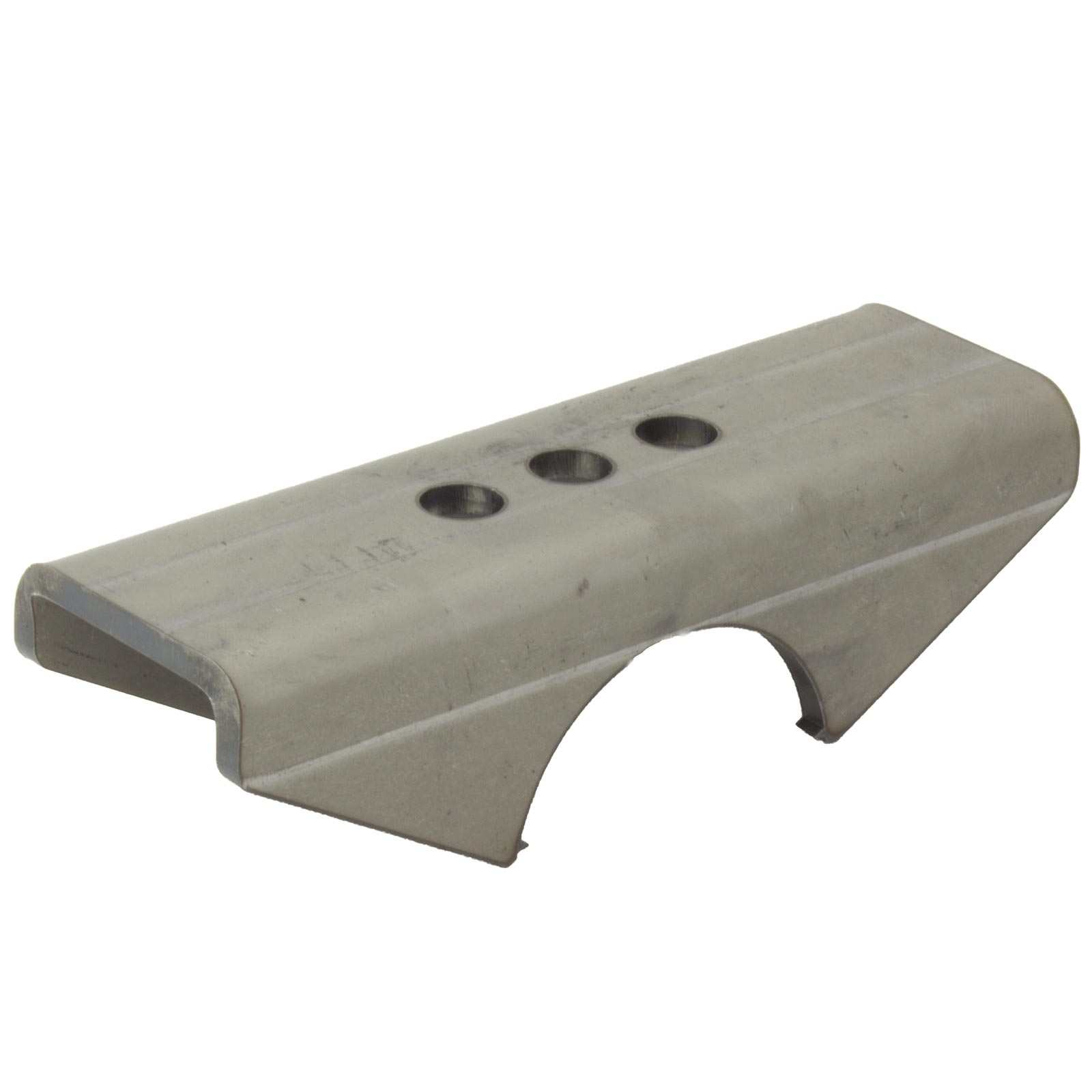

Toyota Spring Over Axle Perch Pair, 3.0" Axle Tube 2.5" Wide

Toyota Spring Over Axle Perch Pair, 3.0" Axle Tube 2.5" Wide

Precision spring perches for spring-over conversions.

These spring over axle perches are built for Toyota mini truck and Tacoma applications with 3.0" axle tubes. CNC laser cut from 1/4" HR P&O steel plate and folded on a 290 ton CNC brake for precision fitment. The 8.0" length helps control axle wrap while the 2.5" width provides a stable platform for reliable spring mounting.

Built for versatility with 3 spring pin mounting options to adjust wheelbase if needed. At 8 lbs for the pair, these perches are easily adjustable .25" up or down in tube size with a grinder for different applications.

Key Features

• Part Number: R1110-E
• Fitment: Toyota Mini and Tacoma 3.0" axle tubes
• Material: 1/4" HR P&O steel plate, CNC laser cut
• Dimensions: 8.0" length, 2.5" width, 8 lbs total weight for pair
• Design: Spring-over application with 3 spring pin mounting options

What's Included

• 2x Spring over axle perches (pair for one axle)

Notes

• Designed specifically for spring-over applications
• Adjustable .25" up or down in tube size with grinder
• 3 spring pin options allow wheelbase adjustment
