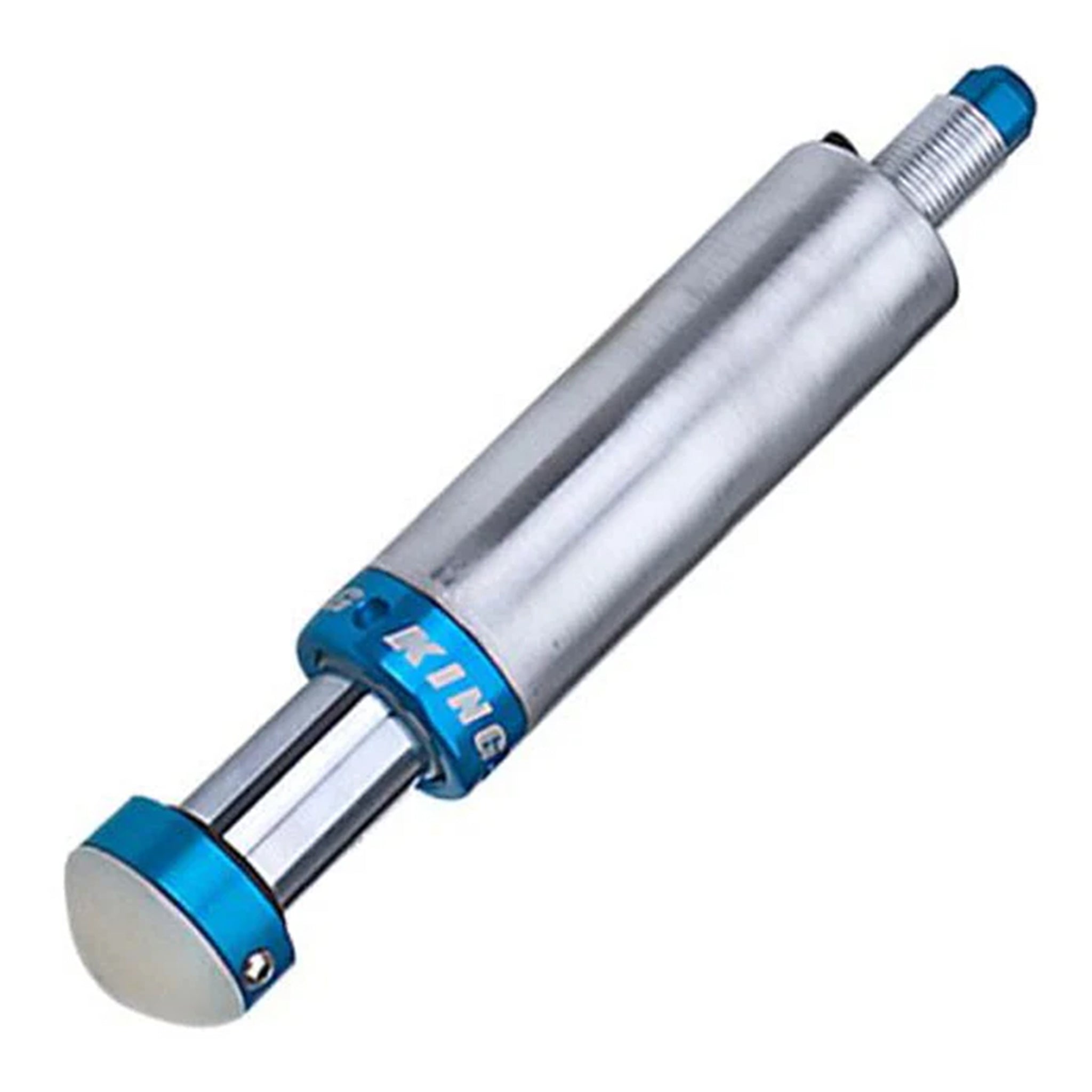

King Bump Stops
$325.00
Unit price
/
Unavailable
By Dirt King
Couldn't load pickup availability
Description
Off-road Factory Race Series bump stops were developed with top off-road racing teams to provide precise control of the last few inches of suspension travel. By applying our race-proven damping technology in a purpose-built, stand-alone component, you can use every bit of suspension travel without harsh bottoming.
The built-in King Air Valve (FAV) Valve allows precise nitrogen charge adjustments to provide a wide range of bottoming control. The durable construction and replaceable Delrin® strike pad are built to take the abuse while providing predictable and quiet operation.
Specifications
- Manufacture: King
What's Included
- 1 King Bump Stop
Features
| Body | Smooth bore and honed seamless steel |
|---|---|
| Body Plating | Zinc plated and clear coated for a long lasting finish |
| Components | Black anodized, CNC machined 6061-T6 billet aluminum |
| Valving | Tunable, velocity sensitive deburred valve shims |
| Seals | Redundant sealing pack system, main seal, wiper seal, scraper seal |
| Pad | Replaceable Delrin® strike pad |
| Shafts | Hard chromed 4130 steel |
| Options | Custom compression and rebound valving available (Add -1 to end of part number) |
| Adjustments | Nitrogen Pressure |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
| Reservoir | Emulsion |
| Valving | STANDARD |
Compatibility
Universal
