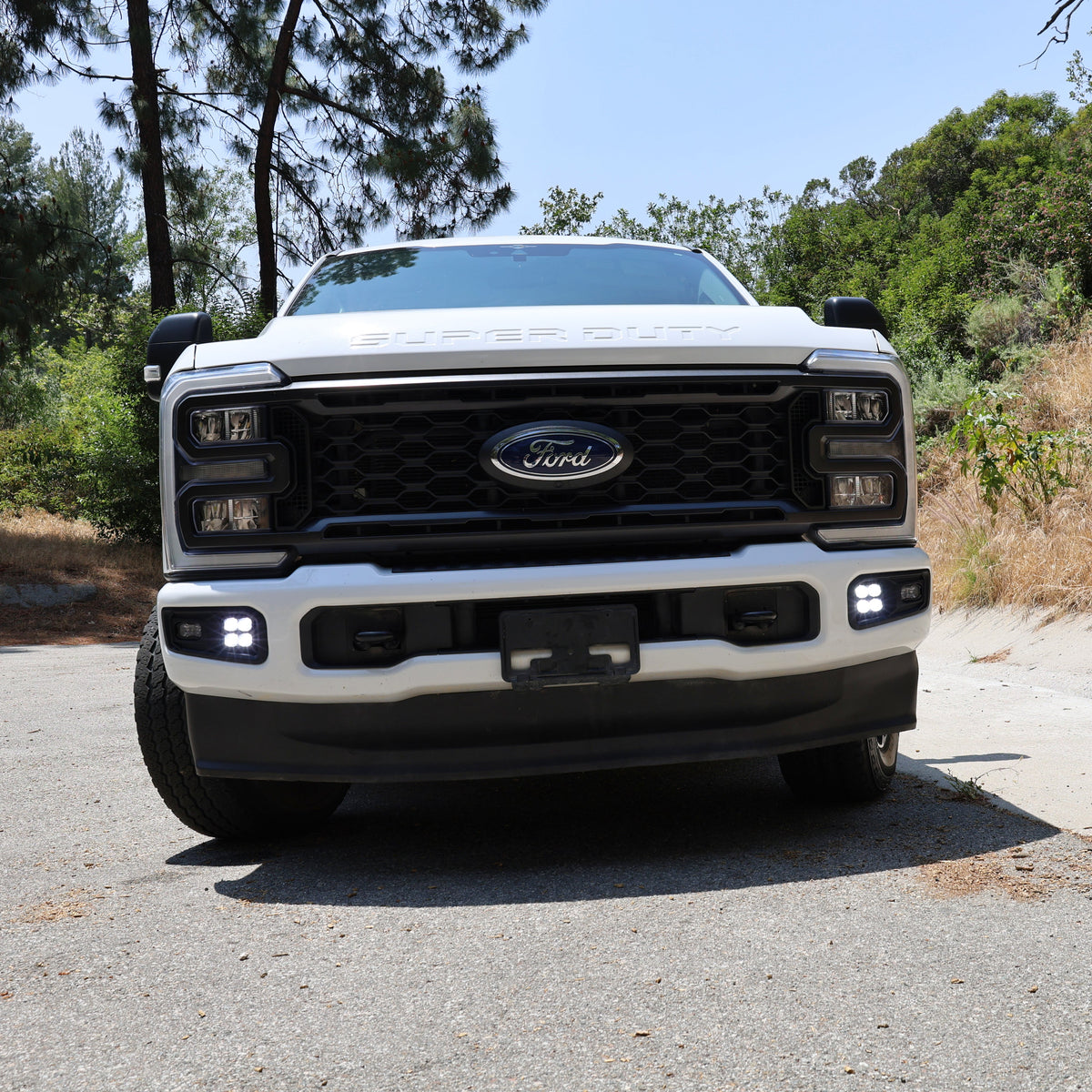

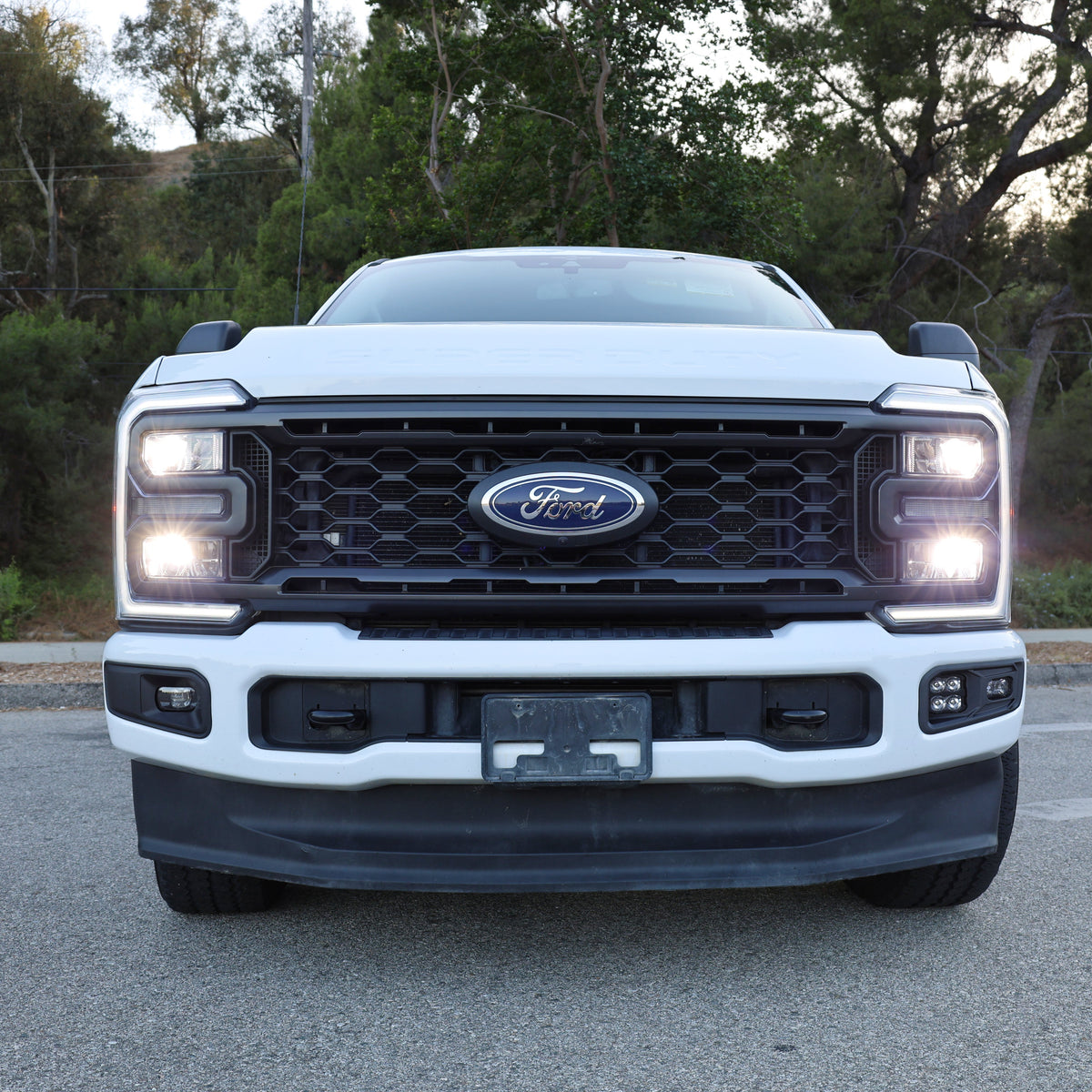

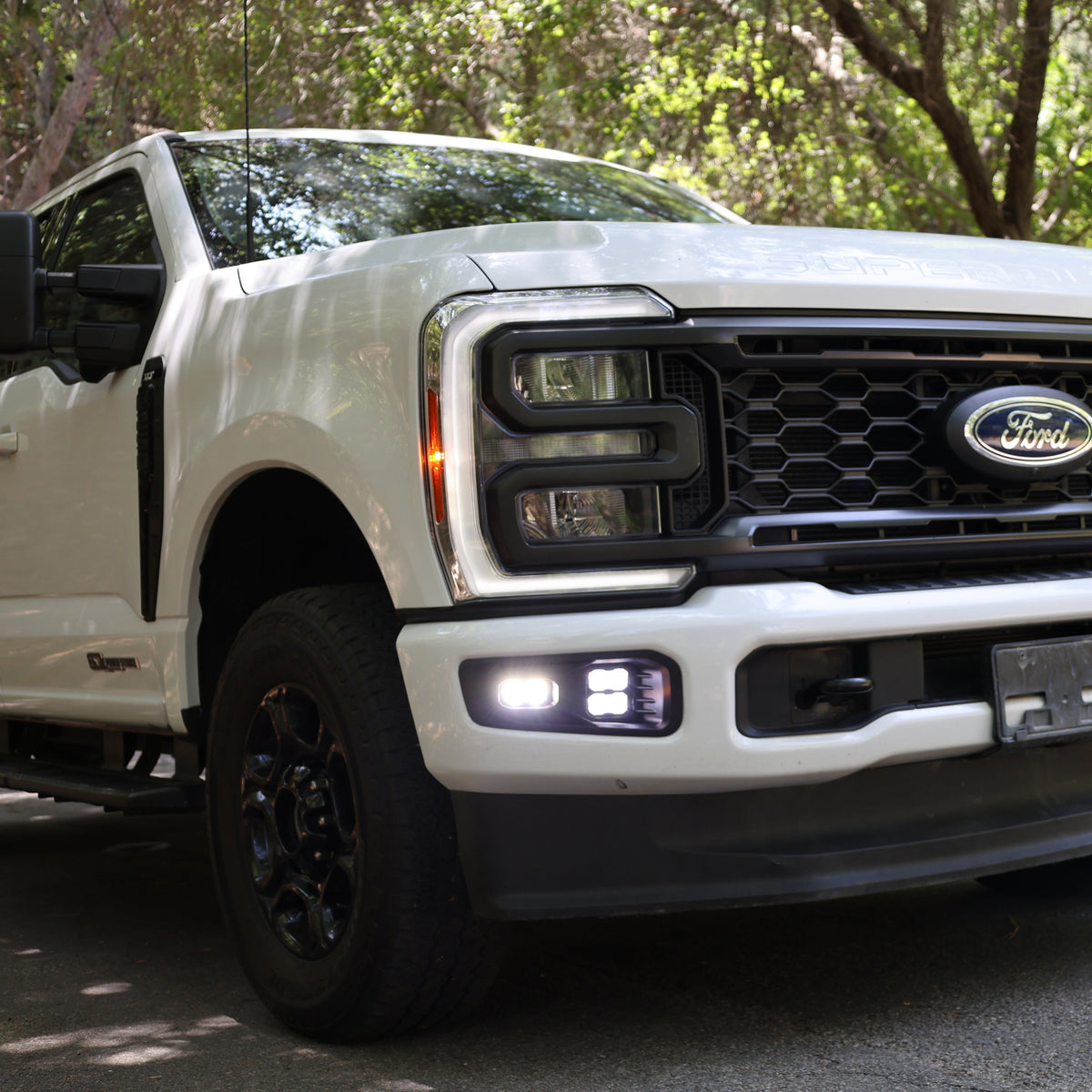

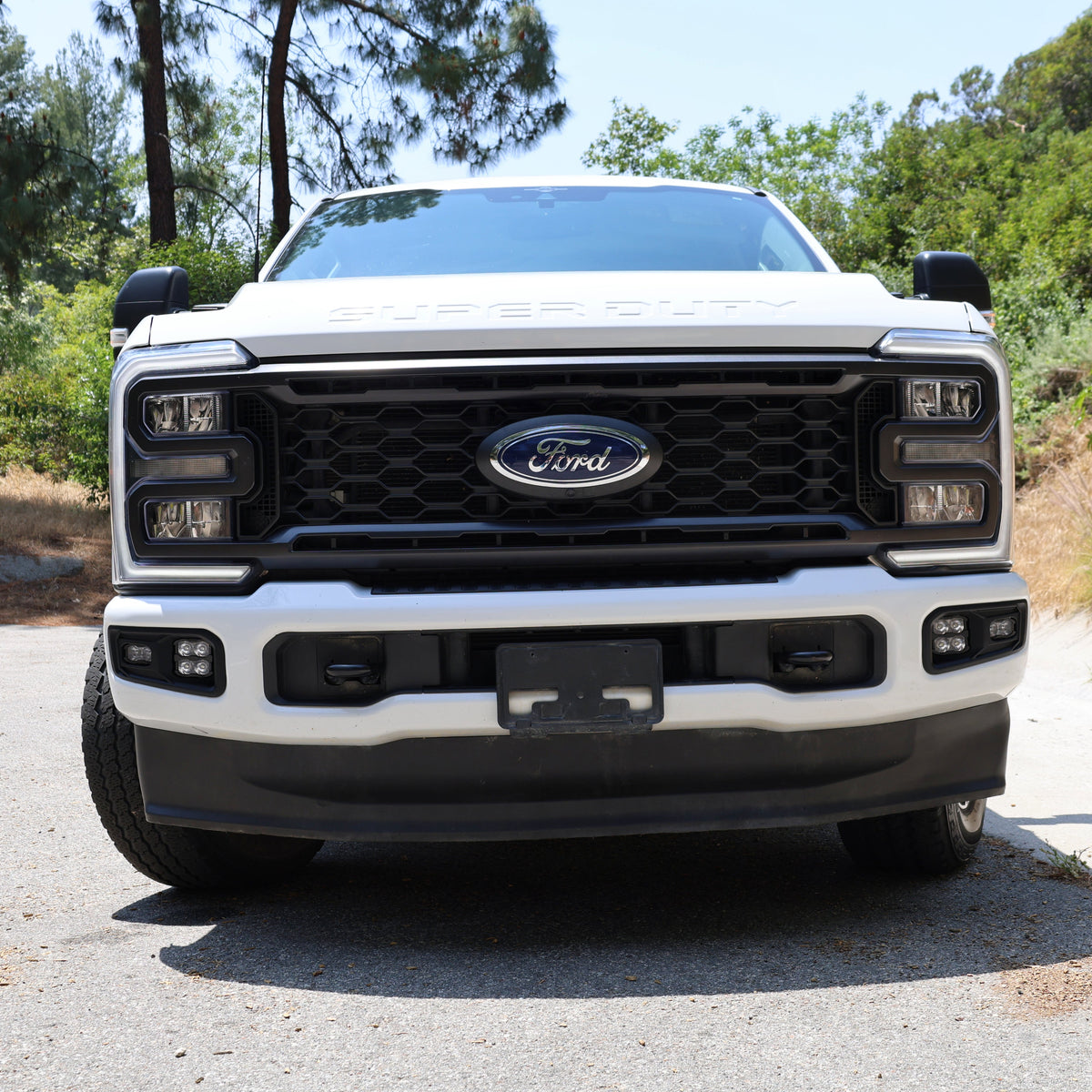

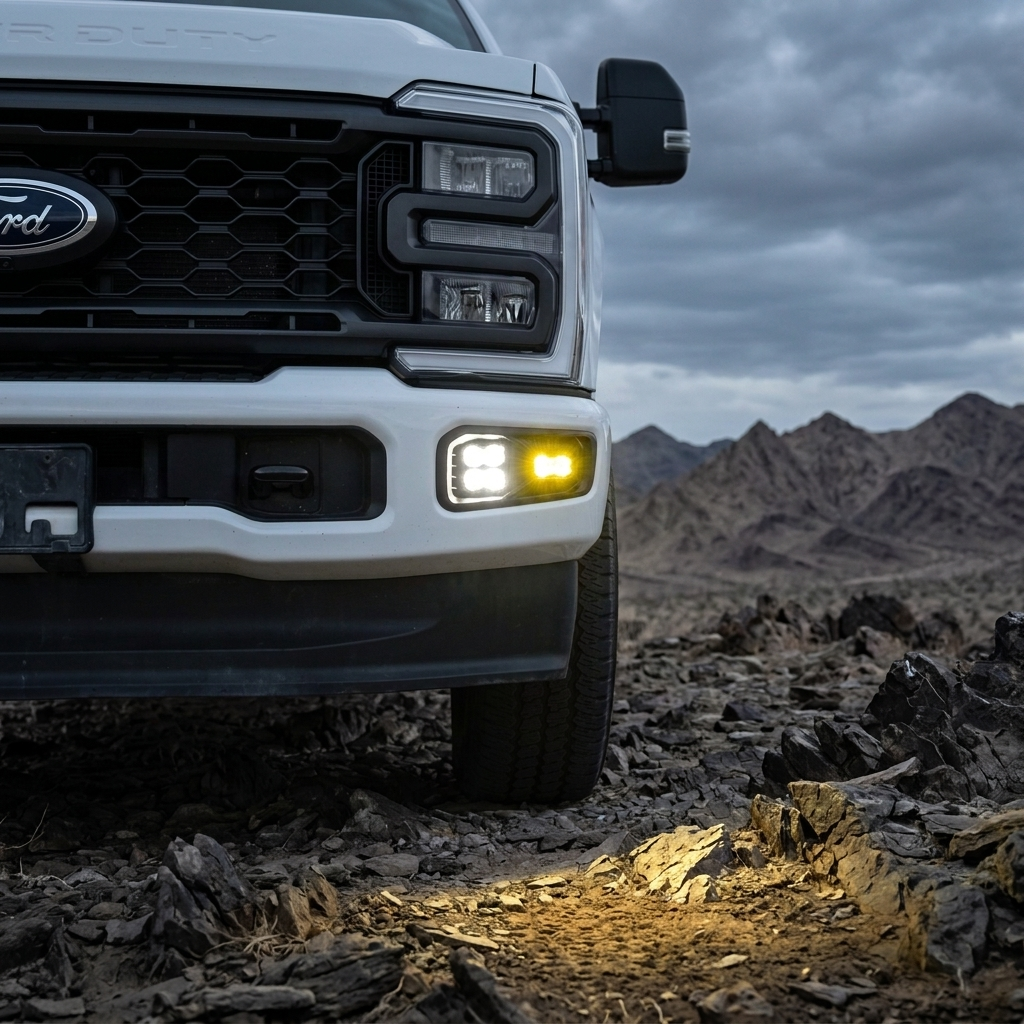

2023+ Ford Super Duty F250/F350/F450 Fog Light Kit

$799.99
By M&R Automotive
40w PODs
20w PODs

Fits: 2023–2026 Ford Super Duty F250/350/450

Trims: F250XL, F350XL, F450XL F250XLT, F350XLT, F450XLT F250 Lariat, F350 Lariat, F450 Lariat F250 King Ranch, F350 King Ranch, F450 King Ranch F250 Platinum, F350 Platinum, F450 Platinum F250 Limited, F350 Limited, F450 Limited

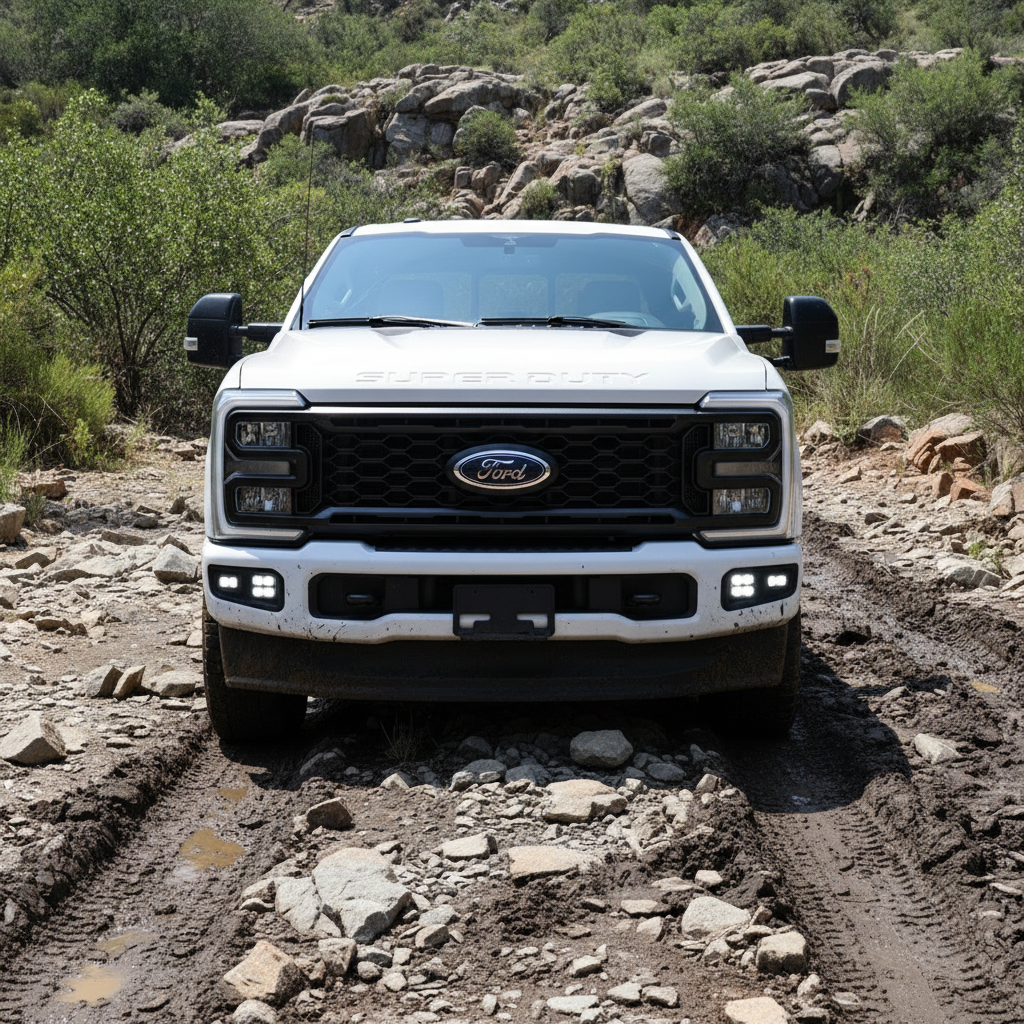

  • A complete replacement for your factory fog lights — a true off-road setup that upgrades output, visibility, and looks in one bolt-on kit.
  • Sold as a pair
  • No drilling, reuses factory bolts and clips

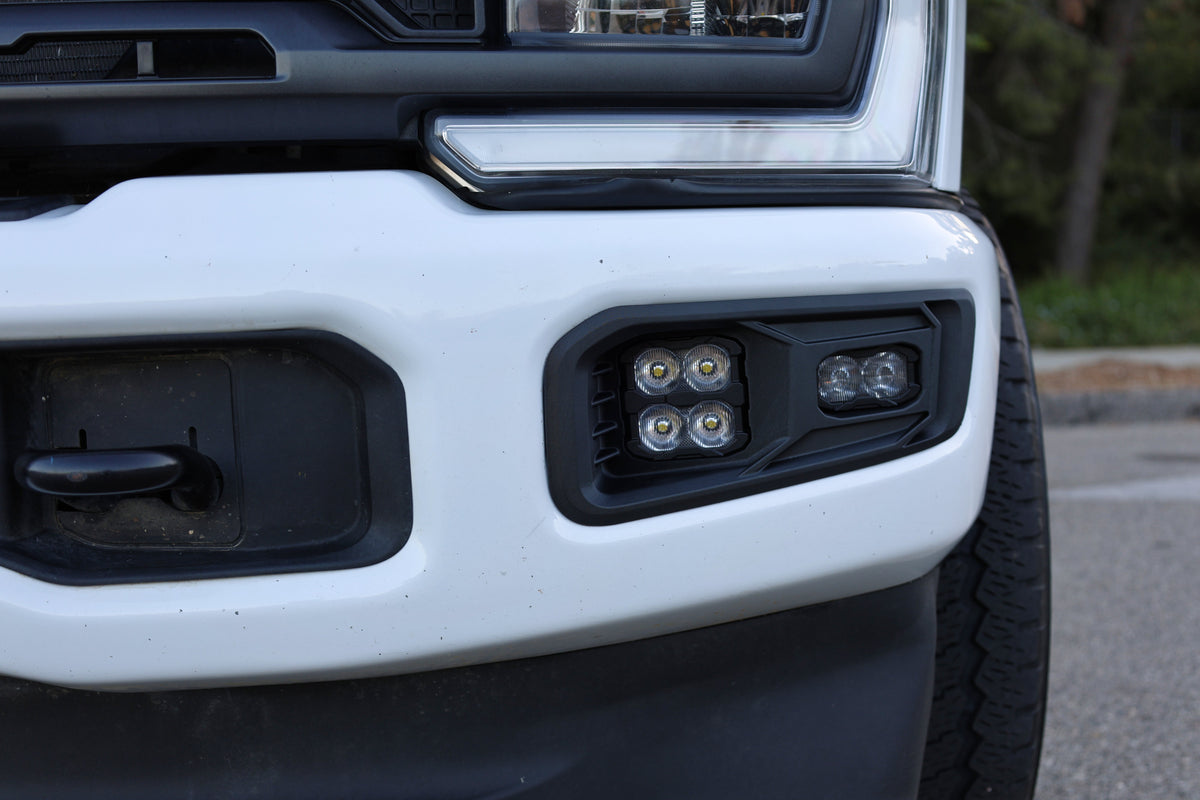

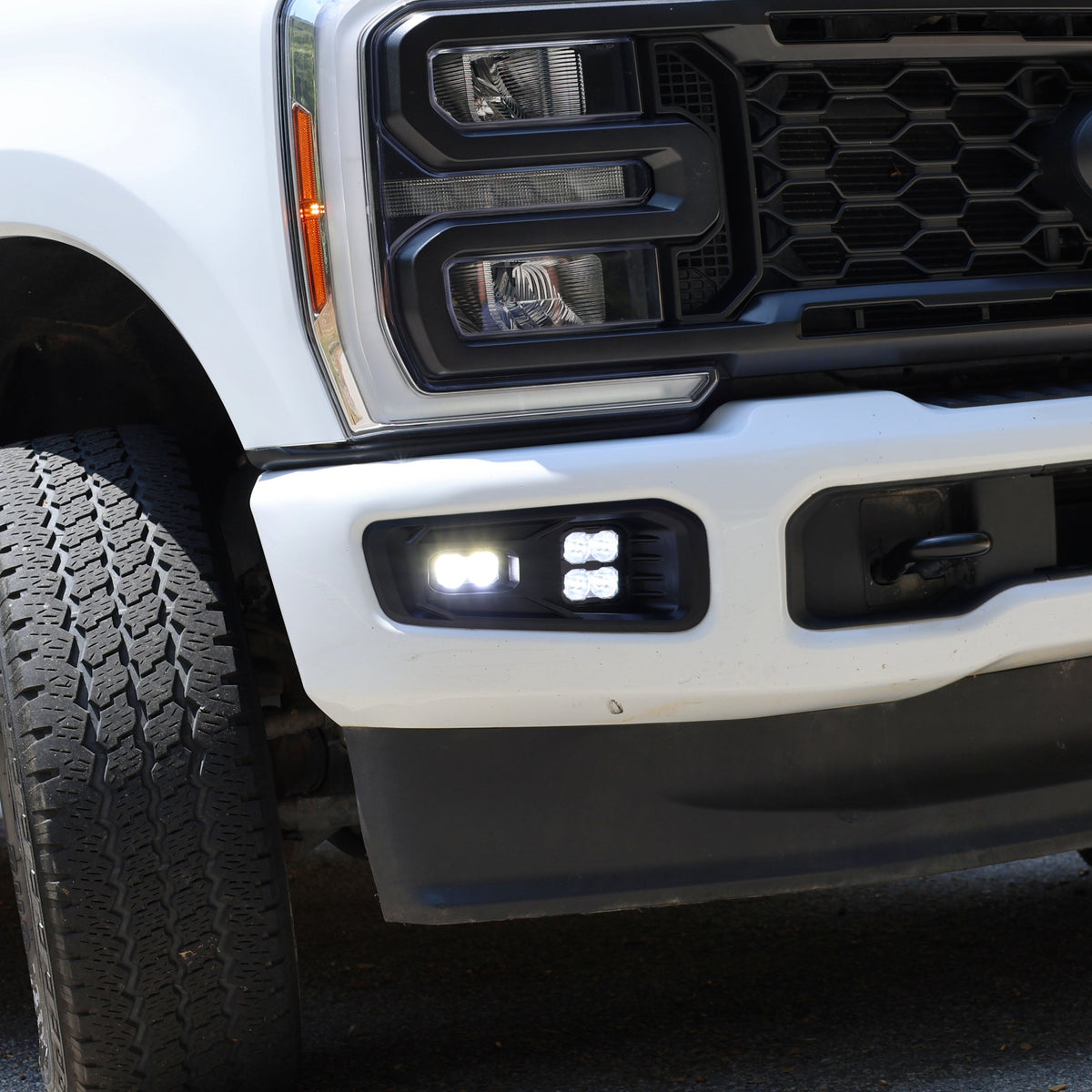

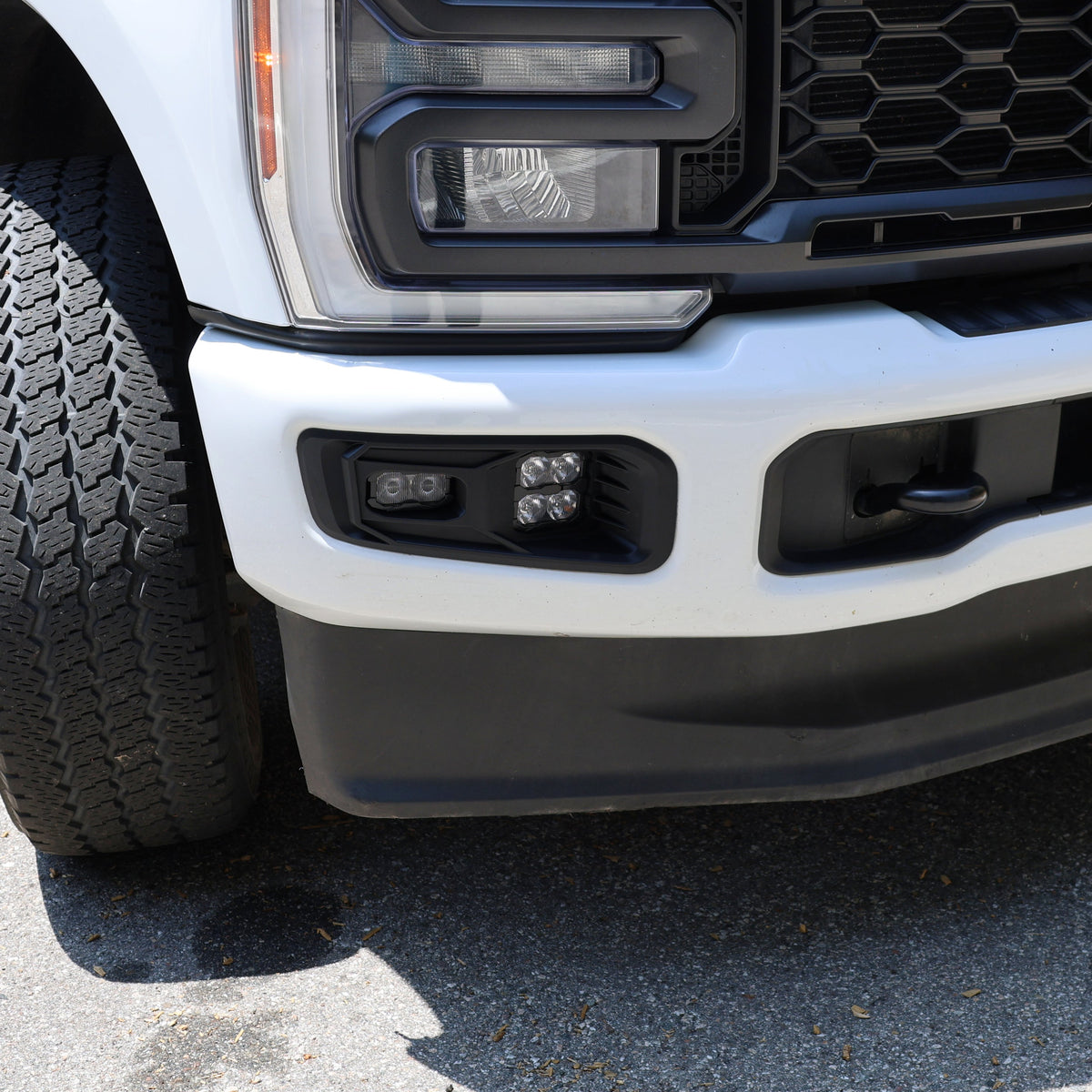

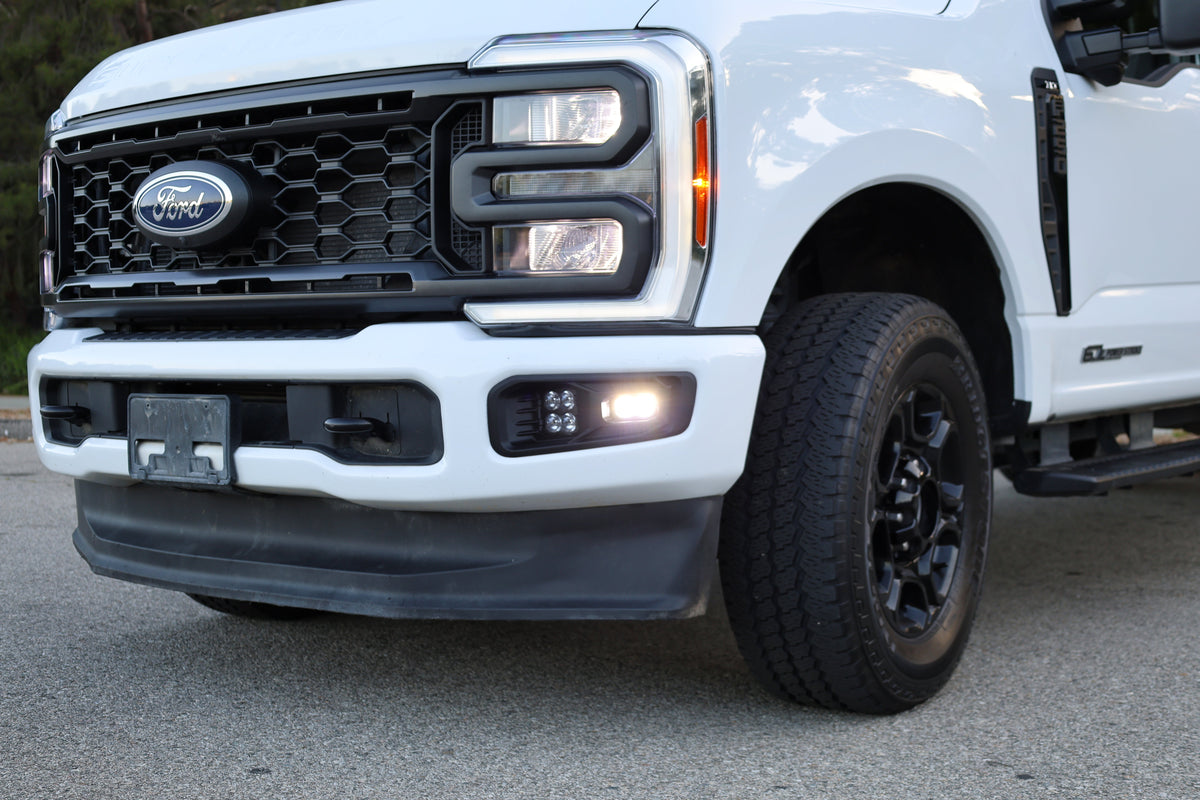

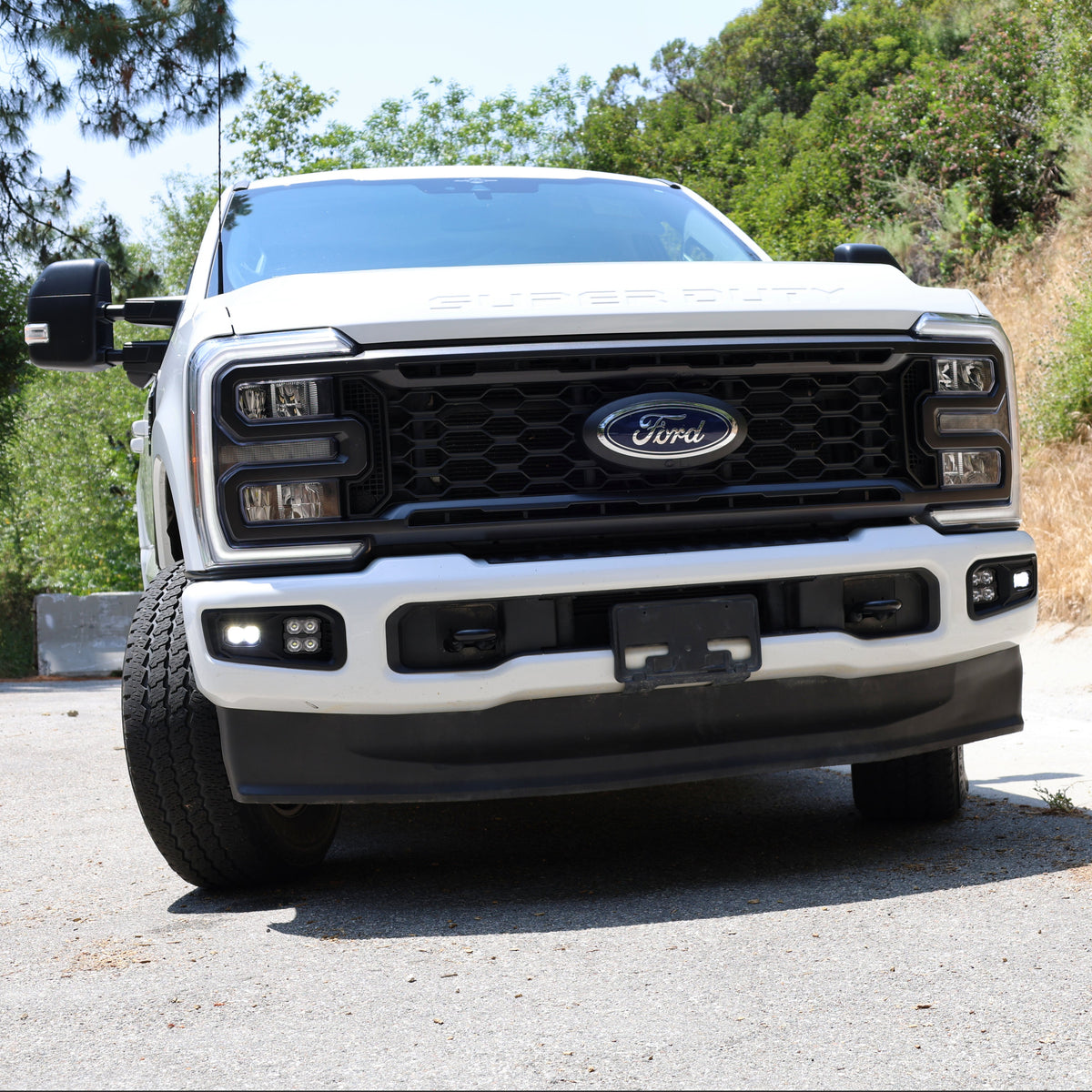

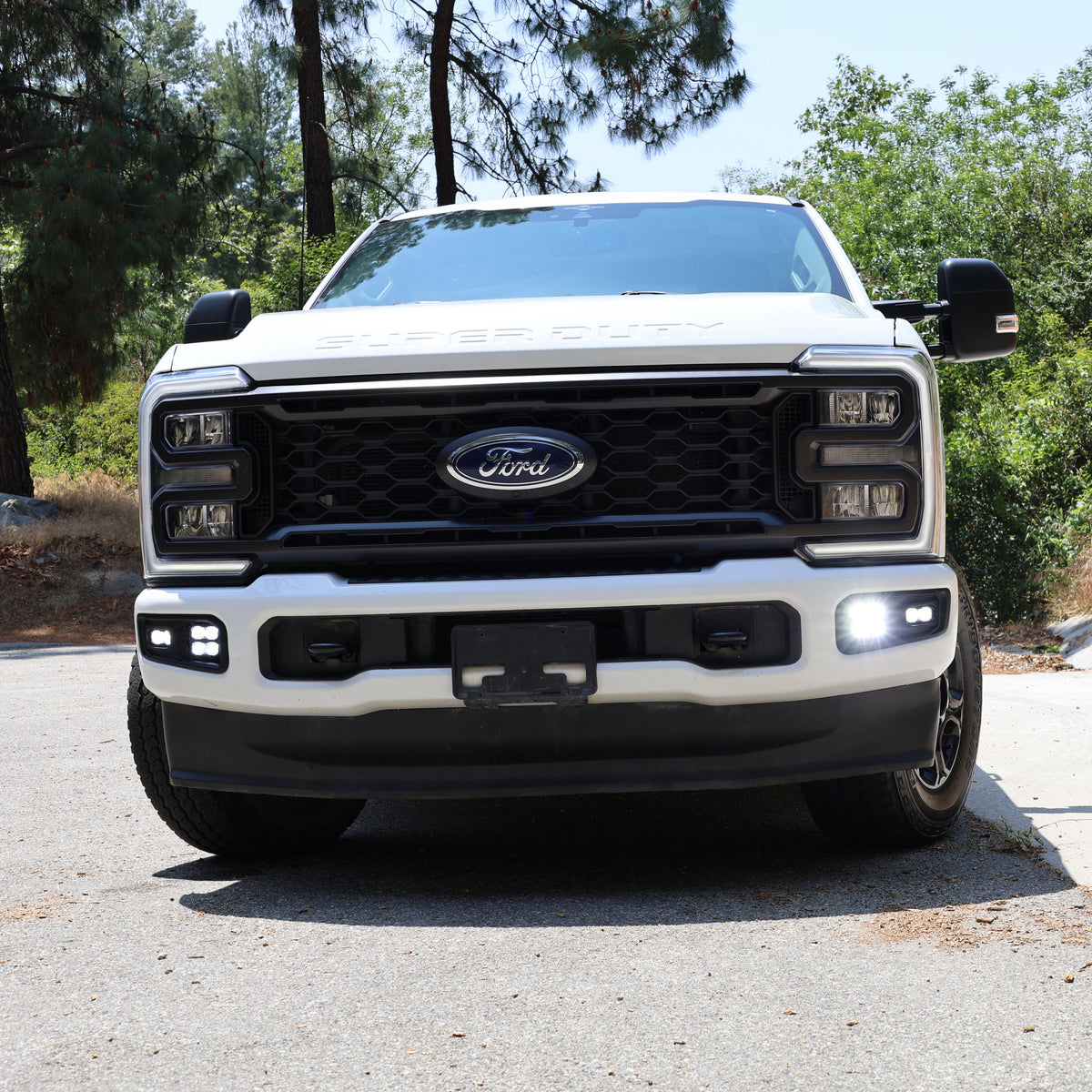

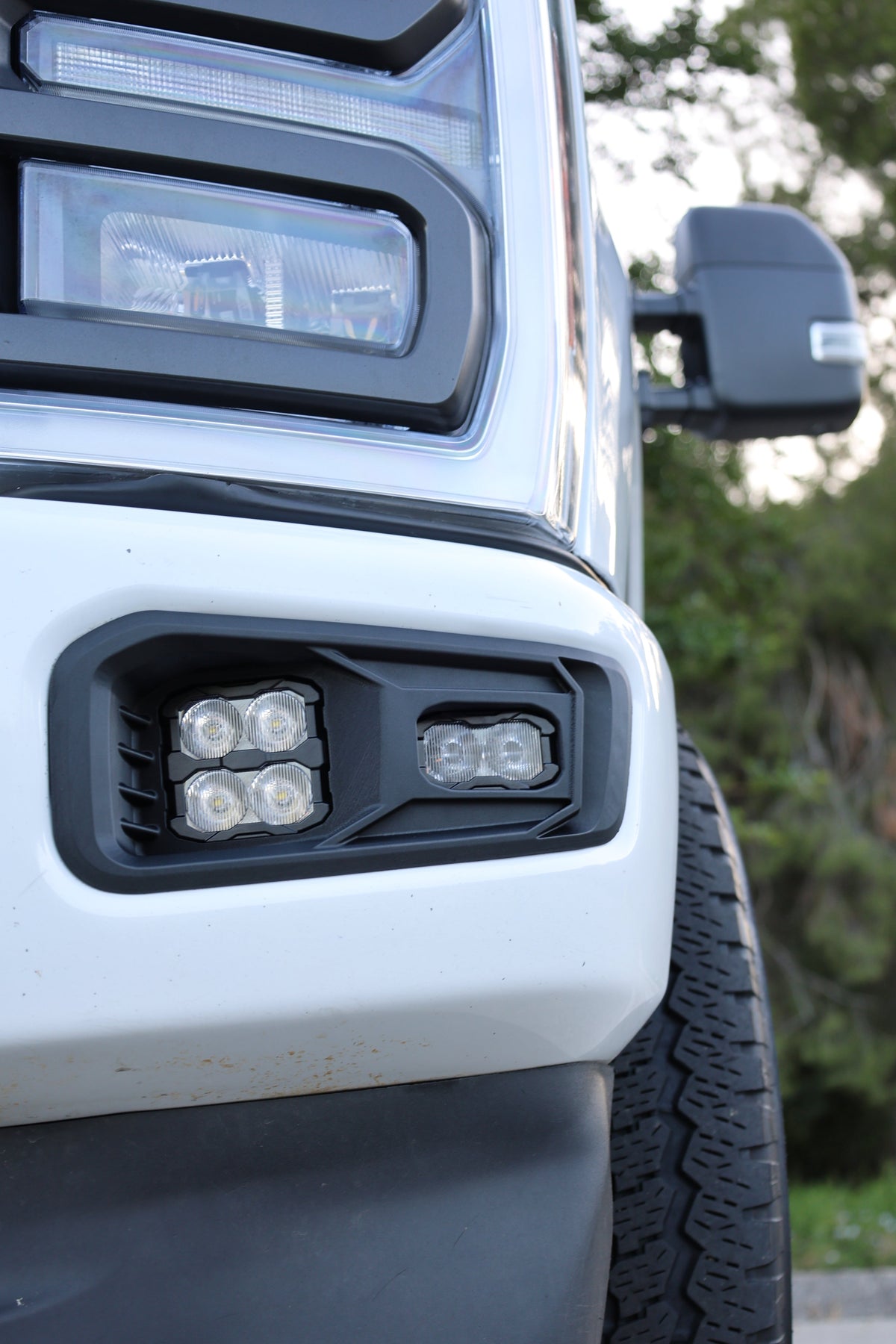

Two pods per side — fog spread and driving distance

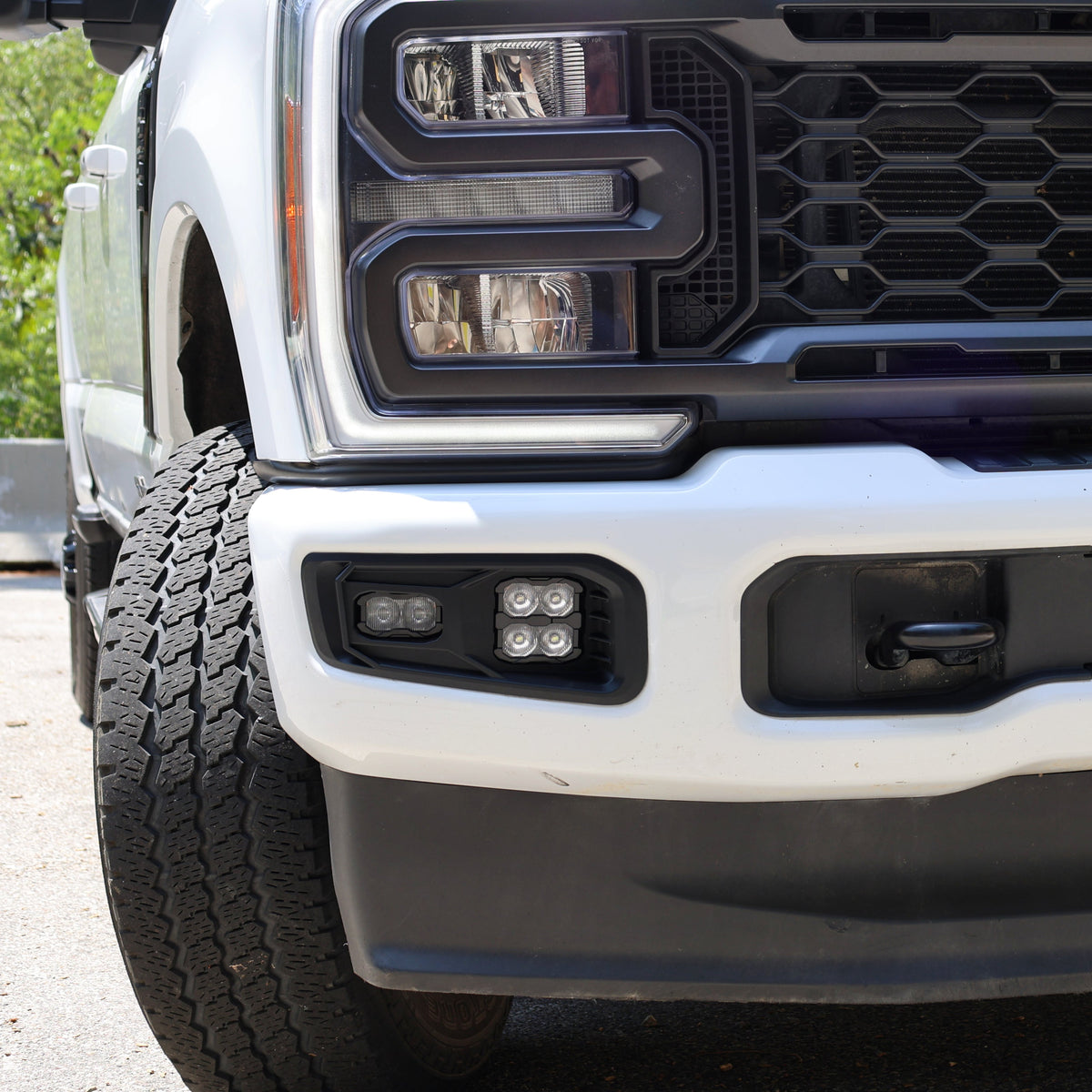

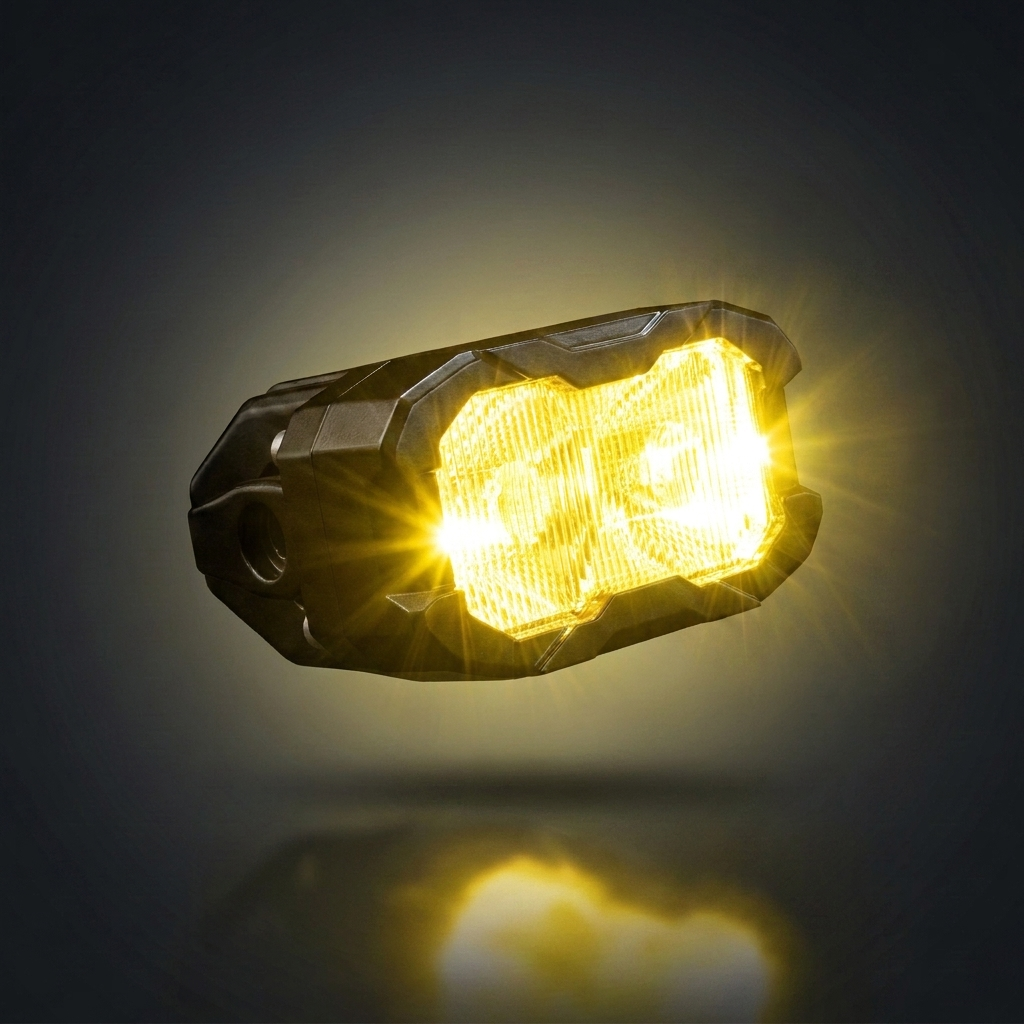

Each shroud houses two PRO pods — four pods total across the kit — so you get both close, wide coverage and long-distance throw at the same time:

  • 20-watt pod — fog beam. Angled 15° outward for a wide spread that fills in the sides and the near foreground — exactly where a fog light should work.
  • 40-watt pod — driving beam. Aimed straight ahead for distance and throw down the trail or road.

***Choosing fog beam pattern for the 20w and driving beam pattern for the 40w is our preference for lenses. If you would like a custom beam pattern, please reach out via email.

CHOOSE LIGHT OUTPUT COLOR

Both the 20w and 40w pods are dual function — one off-road main beam that runs alongside an amber DRL (daytime running light) backglow.

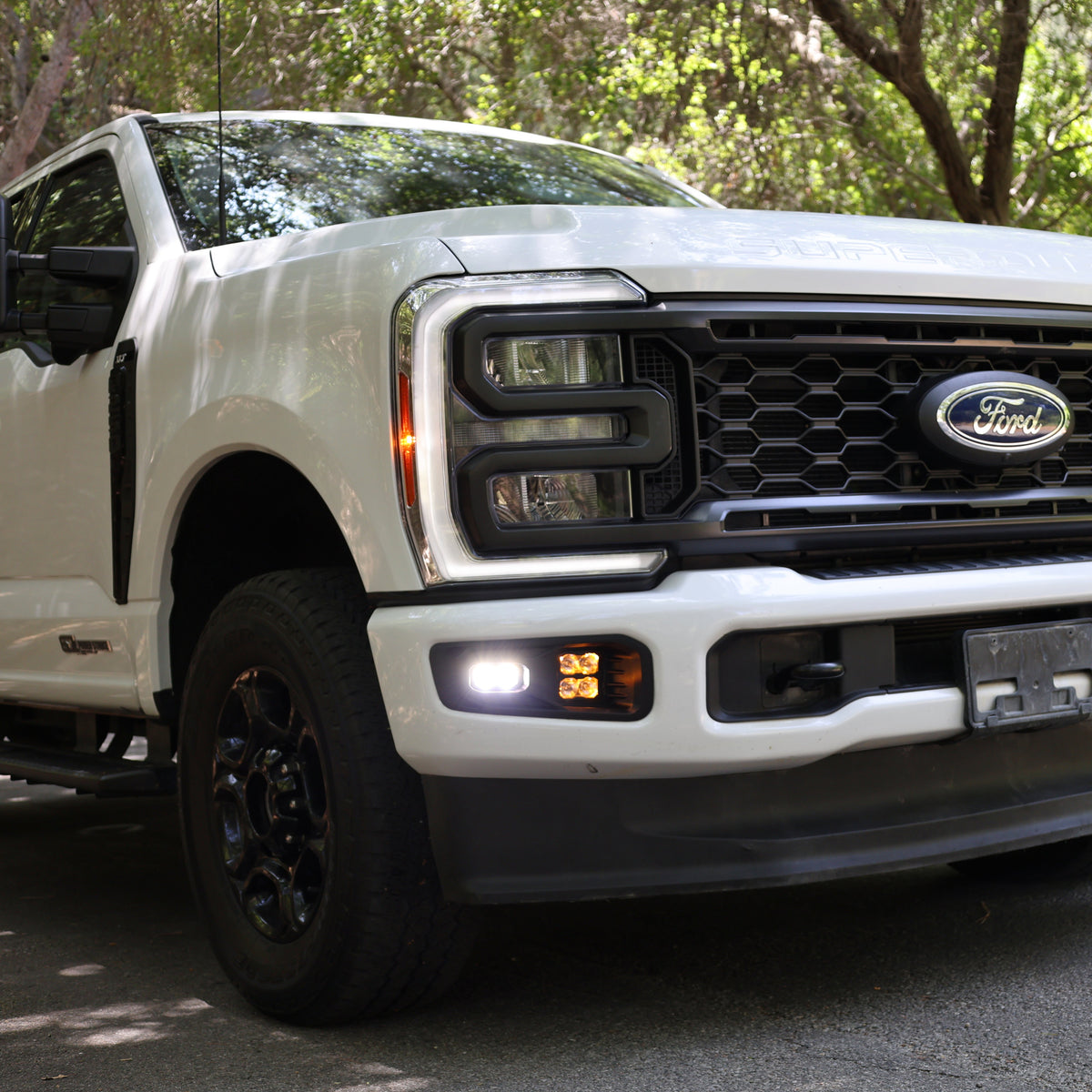

You choose a color for the 40w pods and the 20w pods separately — they don't have to match.

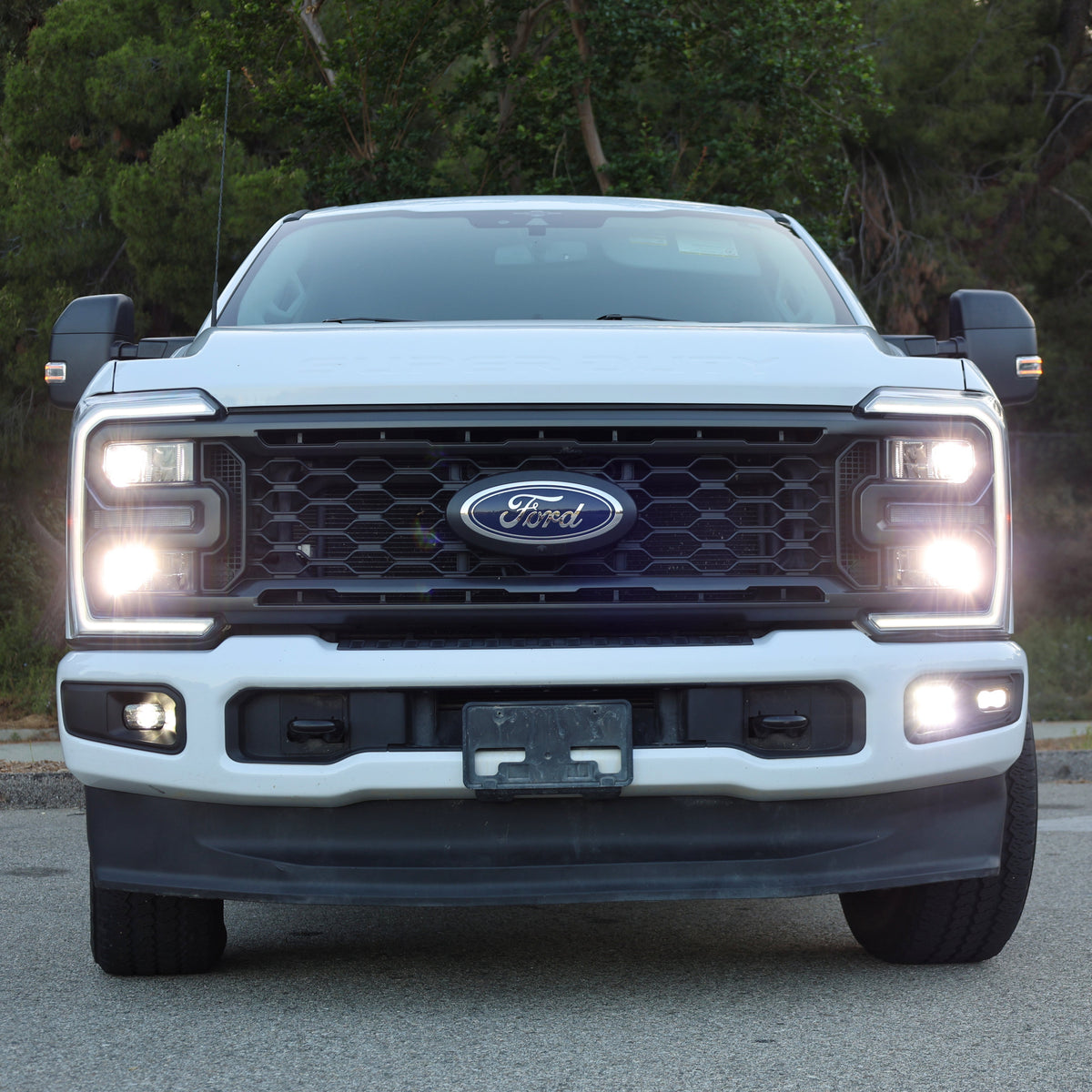

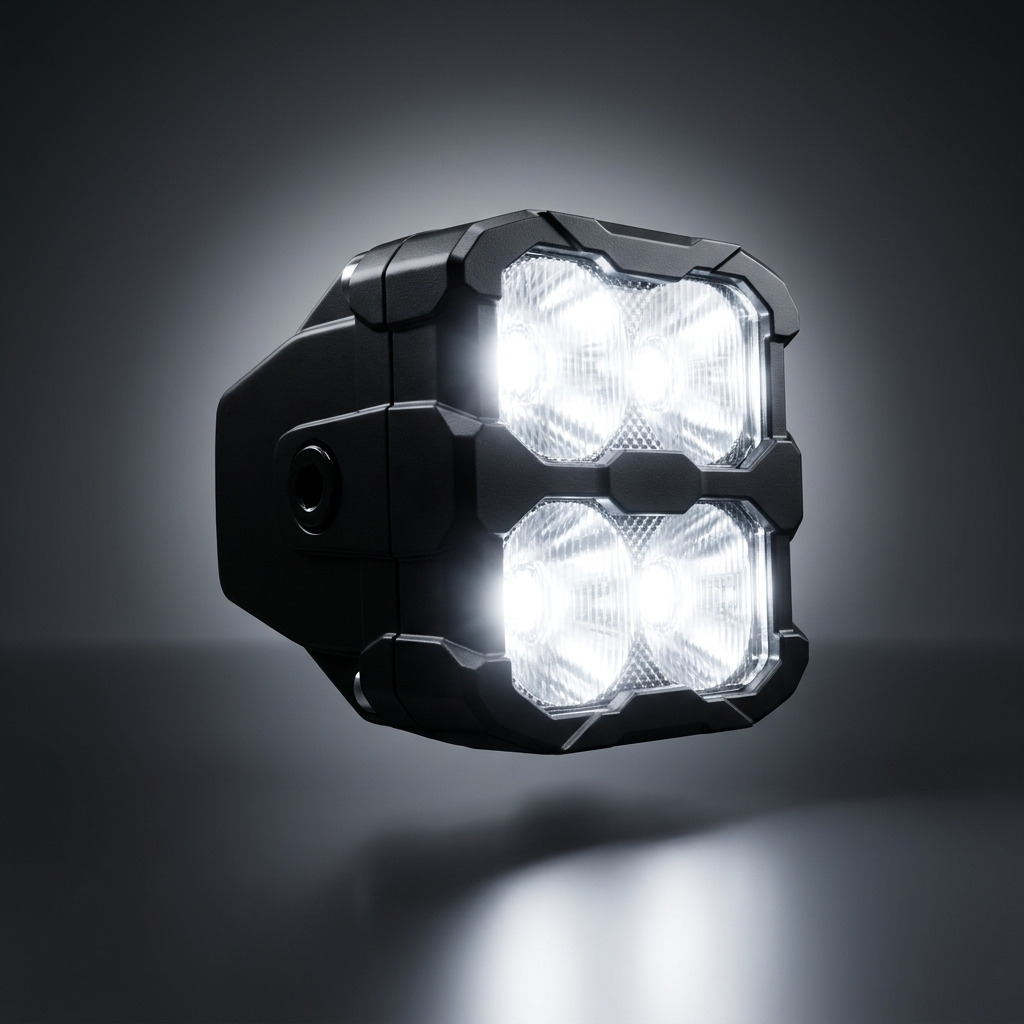

Option 1 — White

Super bright, crisp white beam with plenty of light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

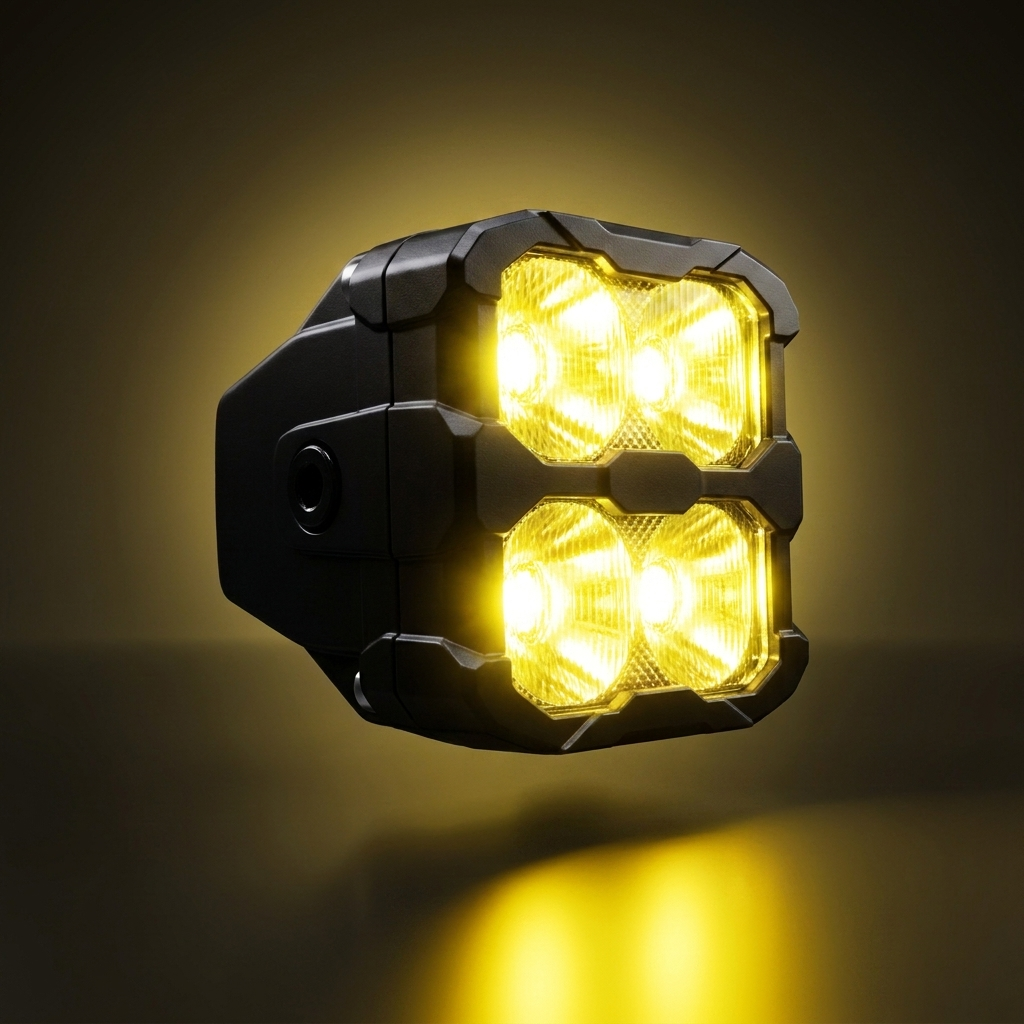

Option 2 — Yellow

Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only — the yellow beam blinds oncoming traffic and isn't street-legal.

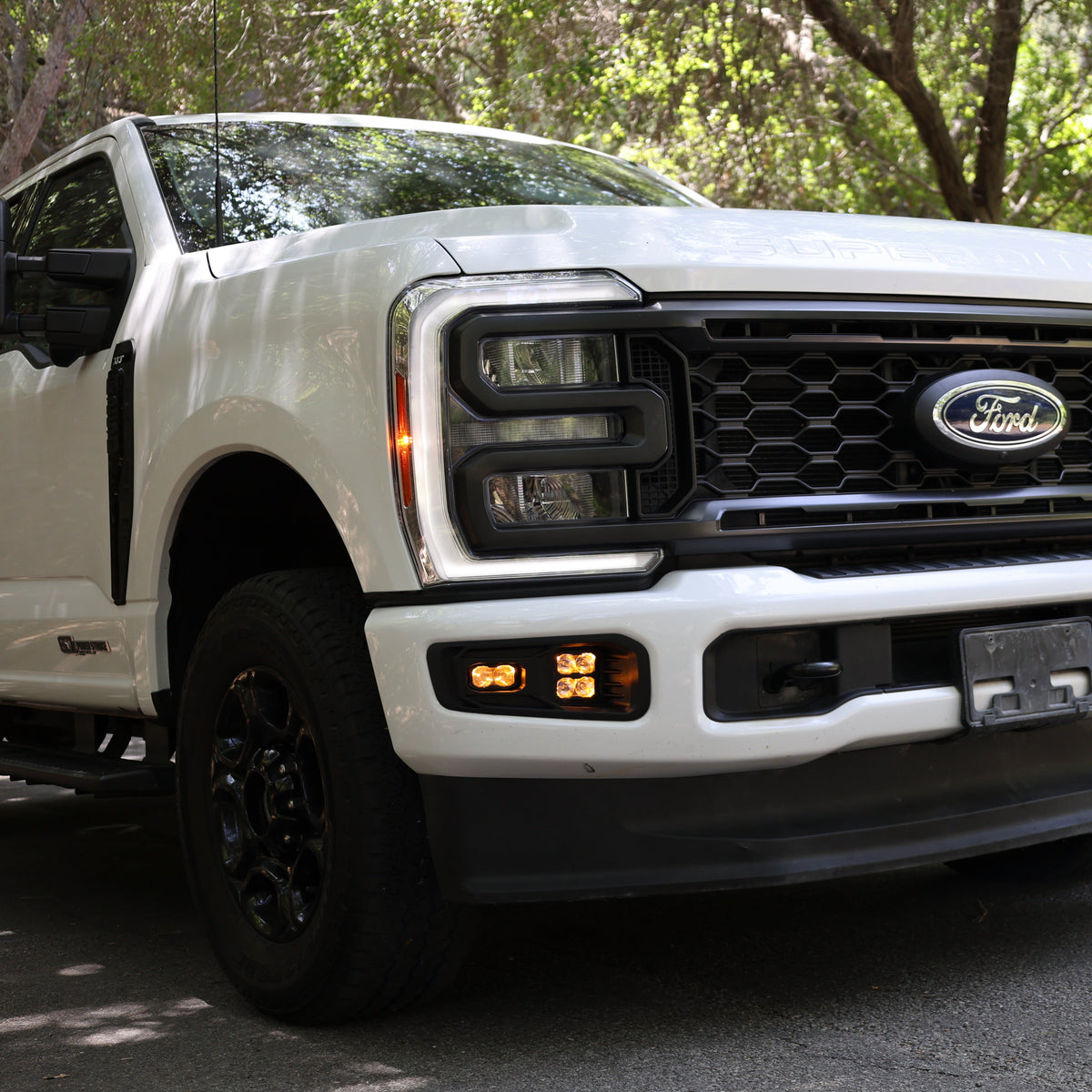

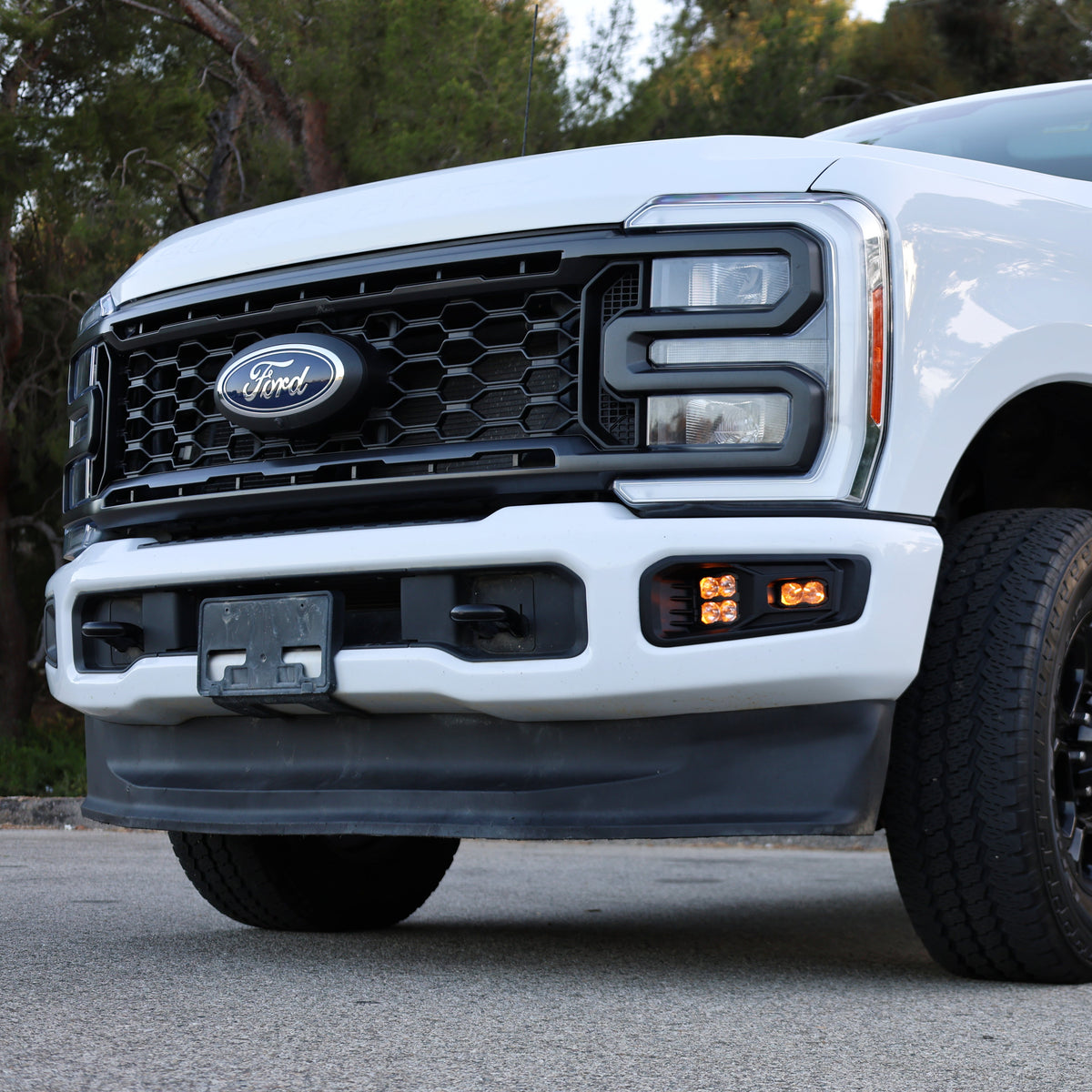

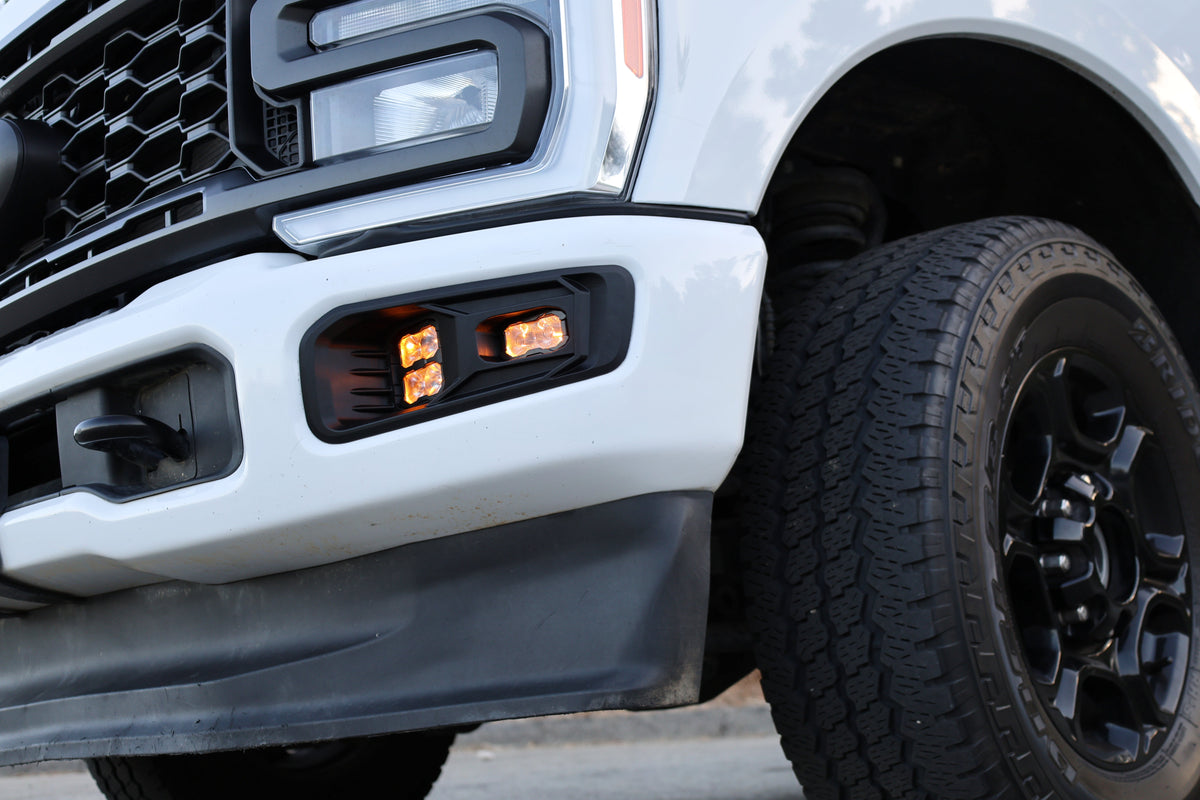

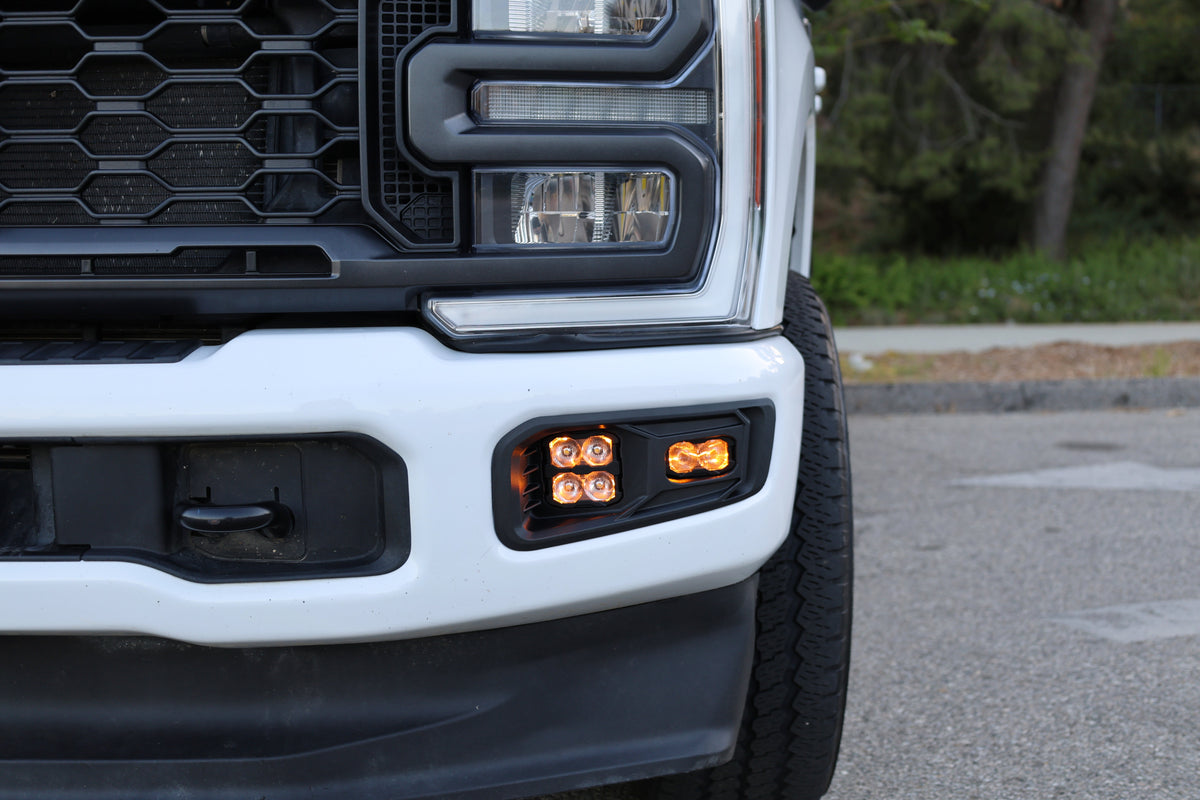

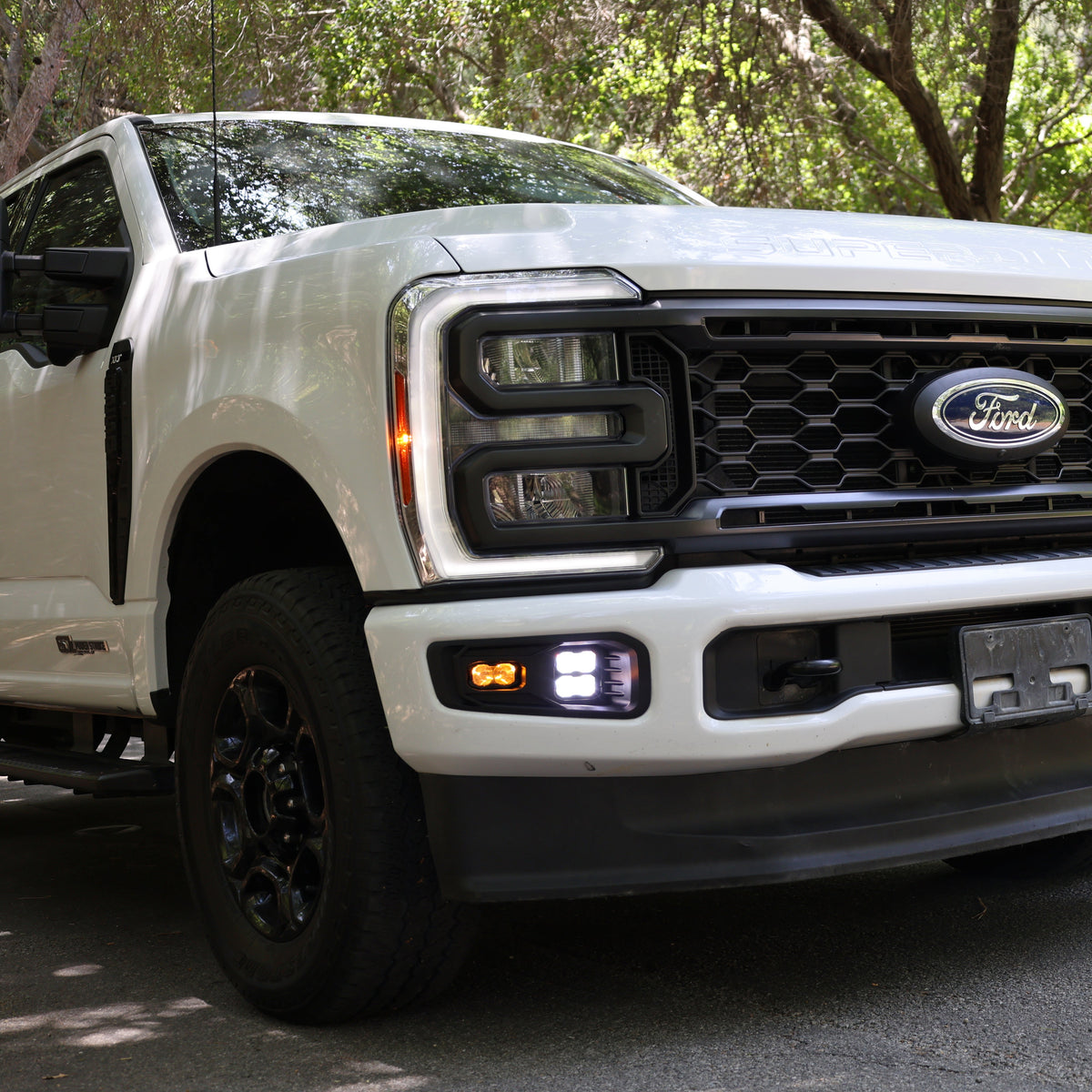

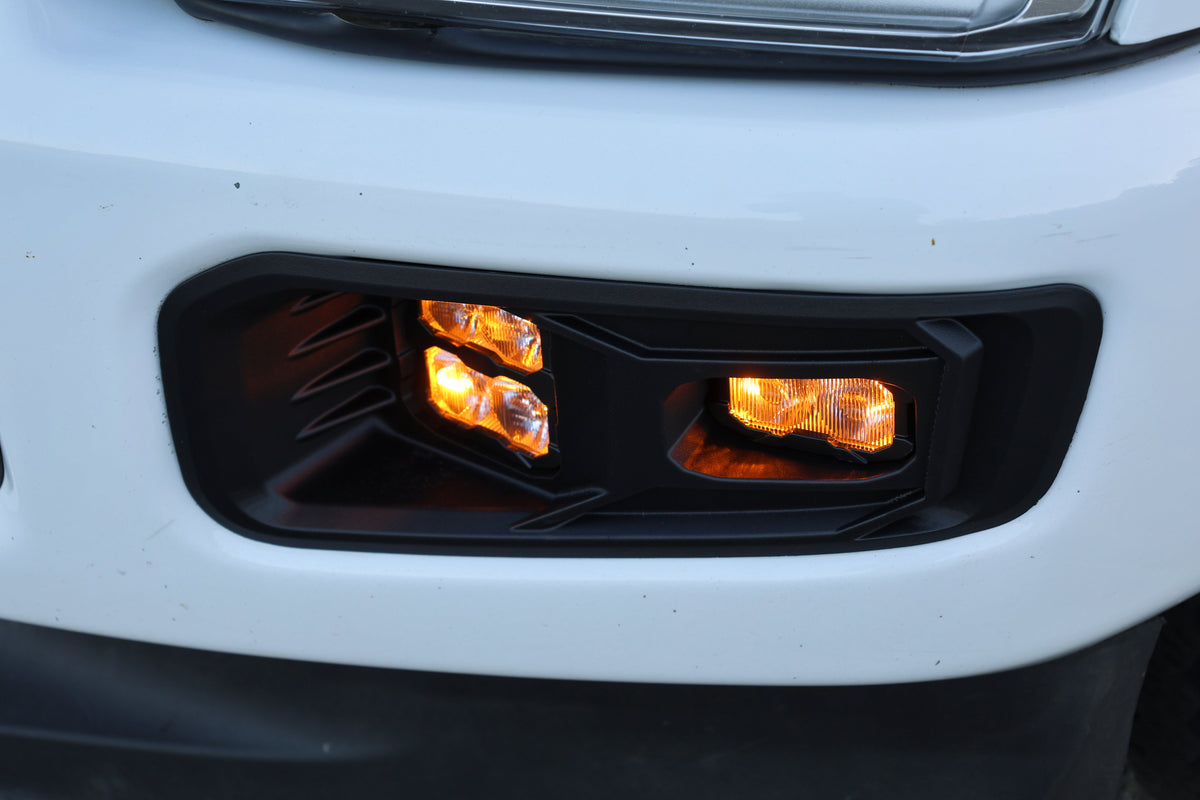

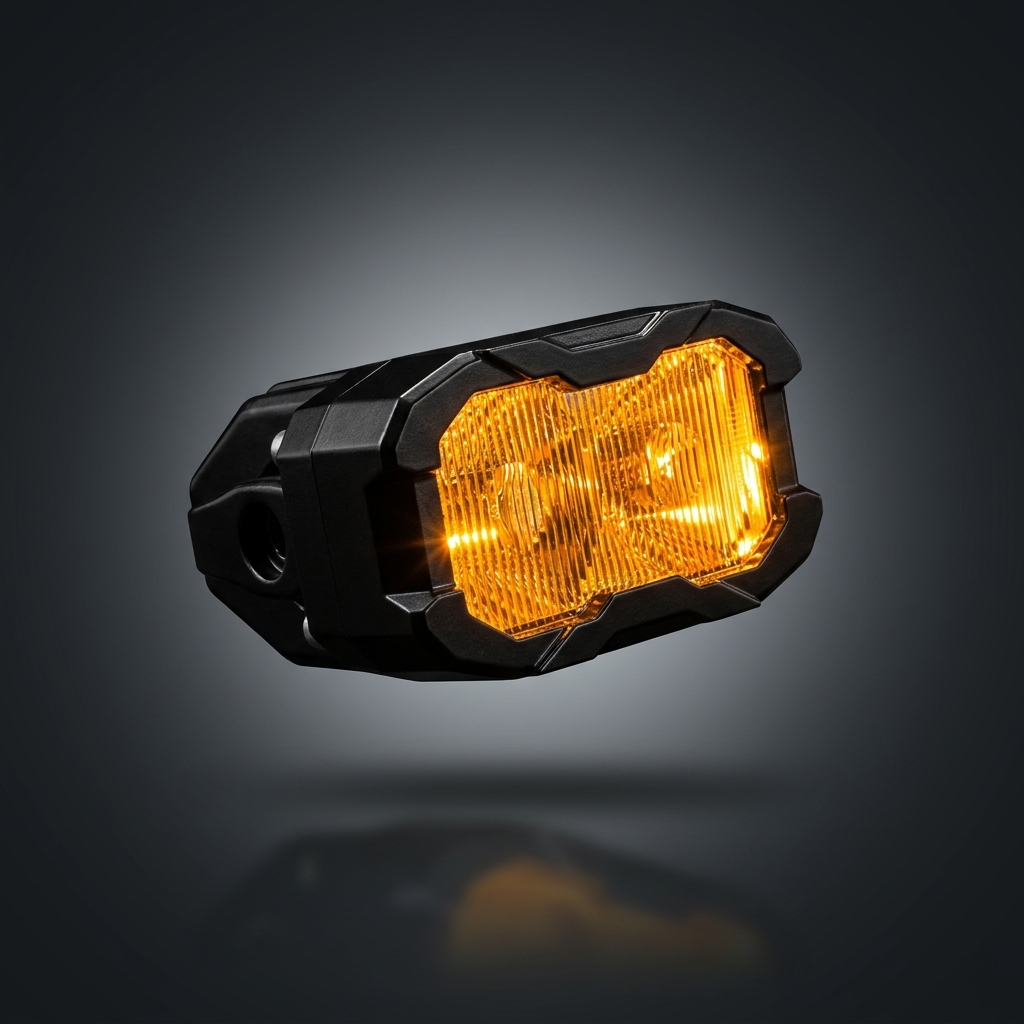

Amber DRL — Both colors come with the same amber daytime running light backglow. Doesn't give off much light — just a bold amber glow that makes your vehicle stand out on the road.

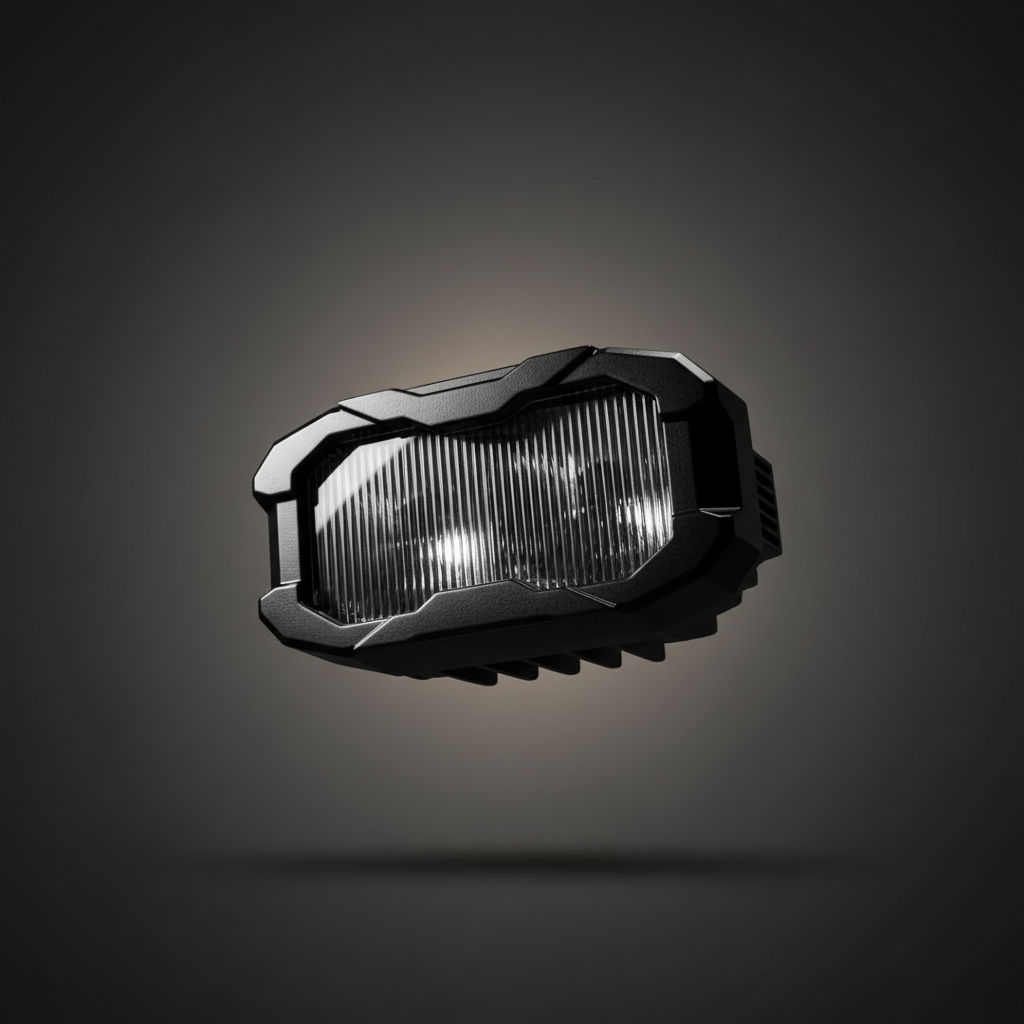

AMP DRAW @ 12V  ·  20W PRO Pod
White2.06A
Yellow2.06A
Amber DRL0.03A

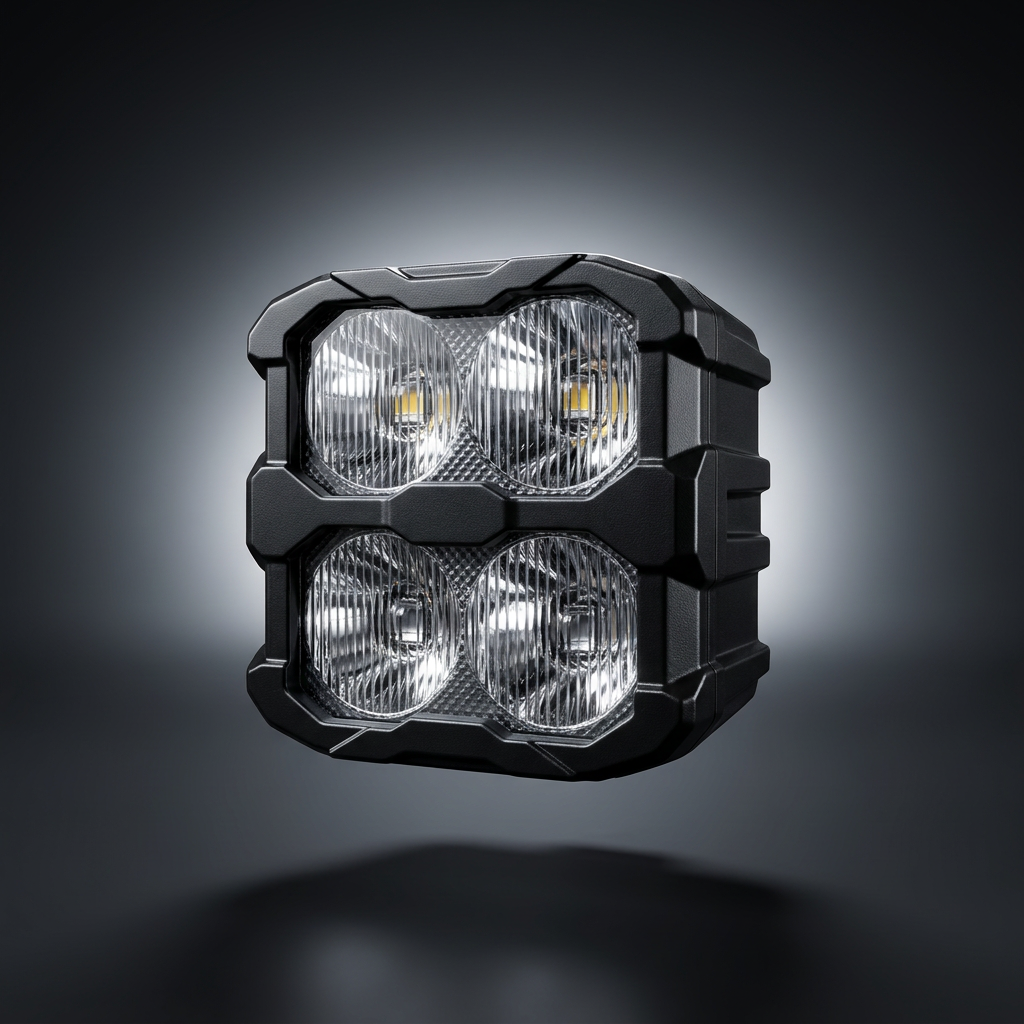

AMP DRAW @ 12V  ·  40W PRO Pod
White3.30A
Yellow3.30A
Amber DRL0.07A

BUILD QUALITY:

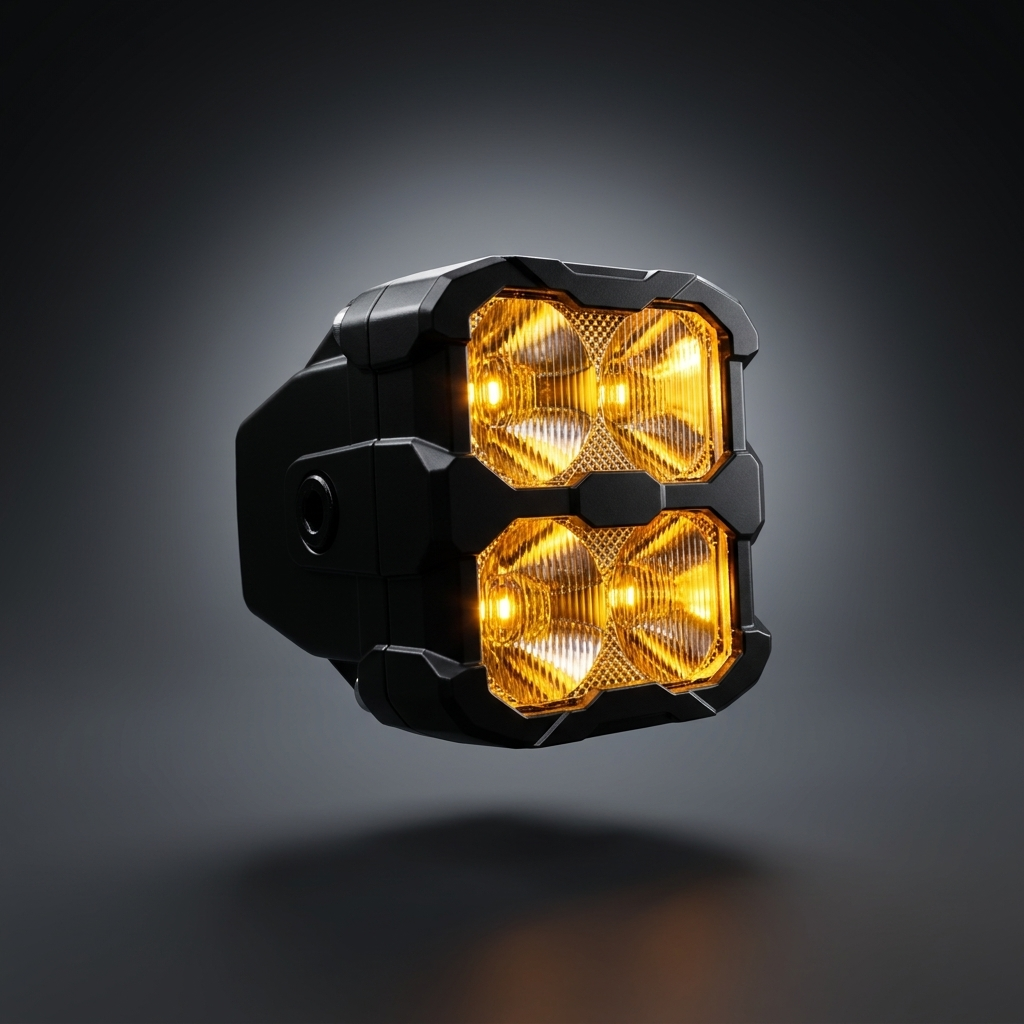

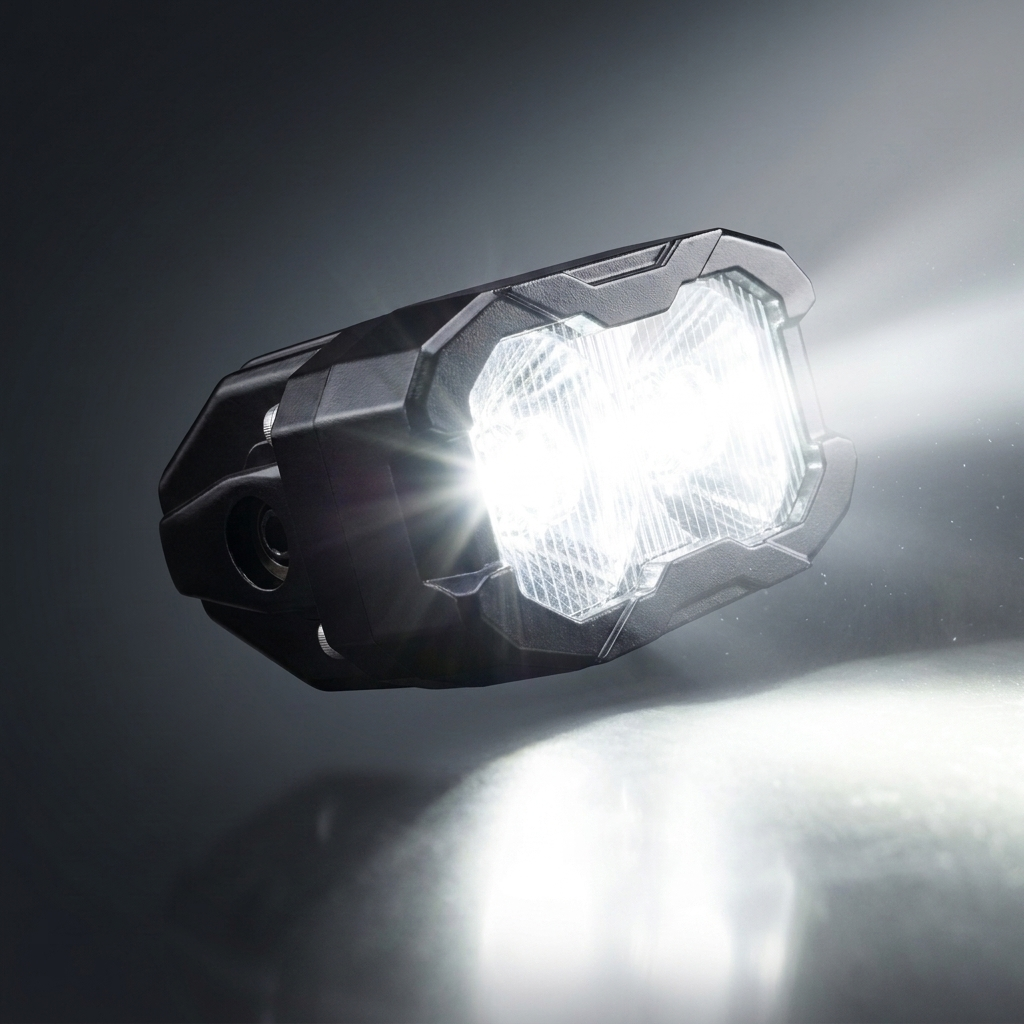

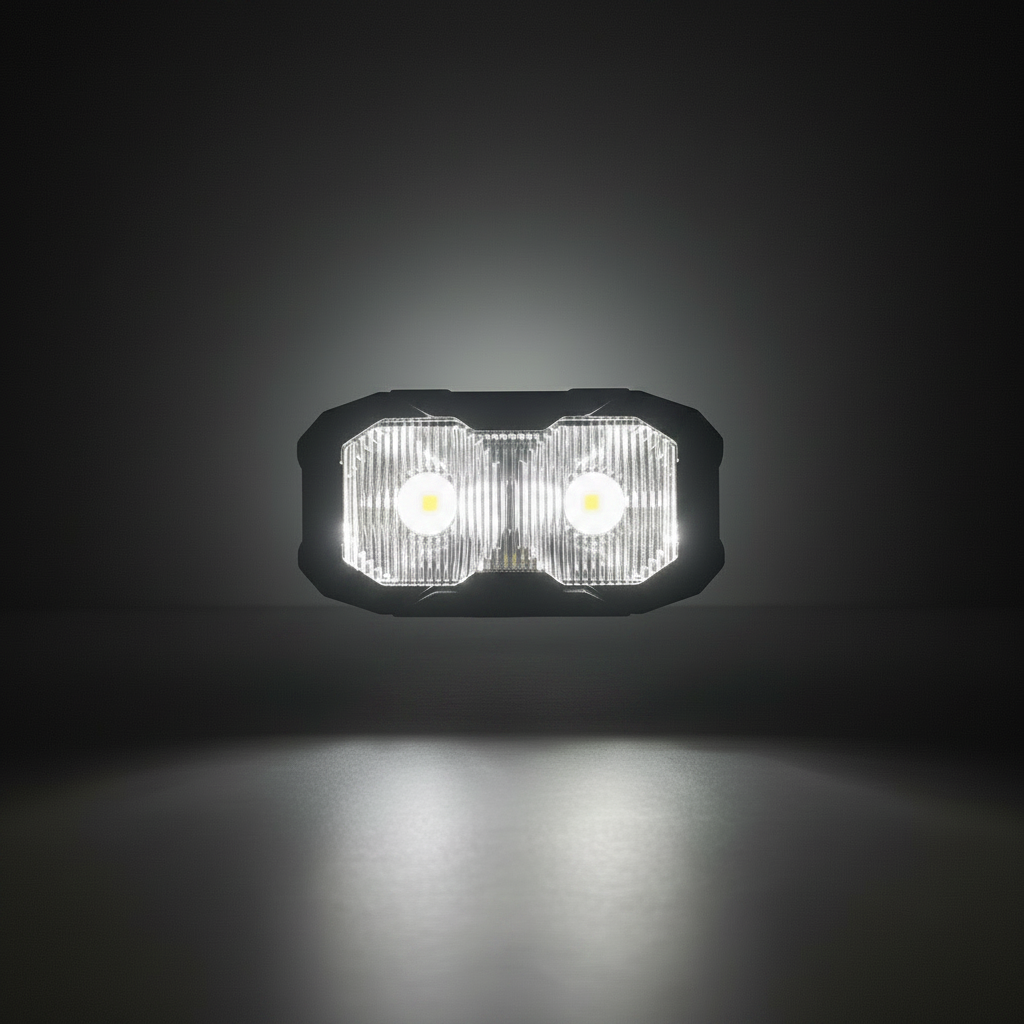

  • Uses a TIR (Total Internal Reflection) lens, which is different from conventional optics that lose light internally and produce glare. The TIR lens collects all of the light from the LED and directs it exactly where you need it, drastically reducing glare and improving total efficiency.
  • Higher light efficiency: brighter, longer irradiation distance
  • Housing is upgraded to 304 aluminum. The surface is UV polyester powder coated to protect against UV, salt water, corrosion, fading, and scratches.
  • Equipped with a thermal management system that automatically adjusts brightness output according to external temperature
  • Rated for a 50,000 hour lifespan

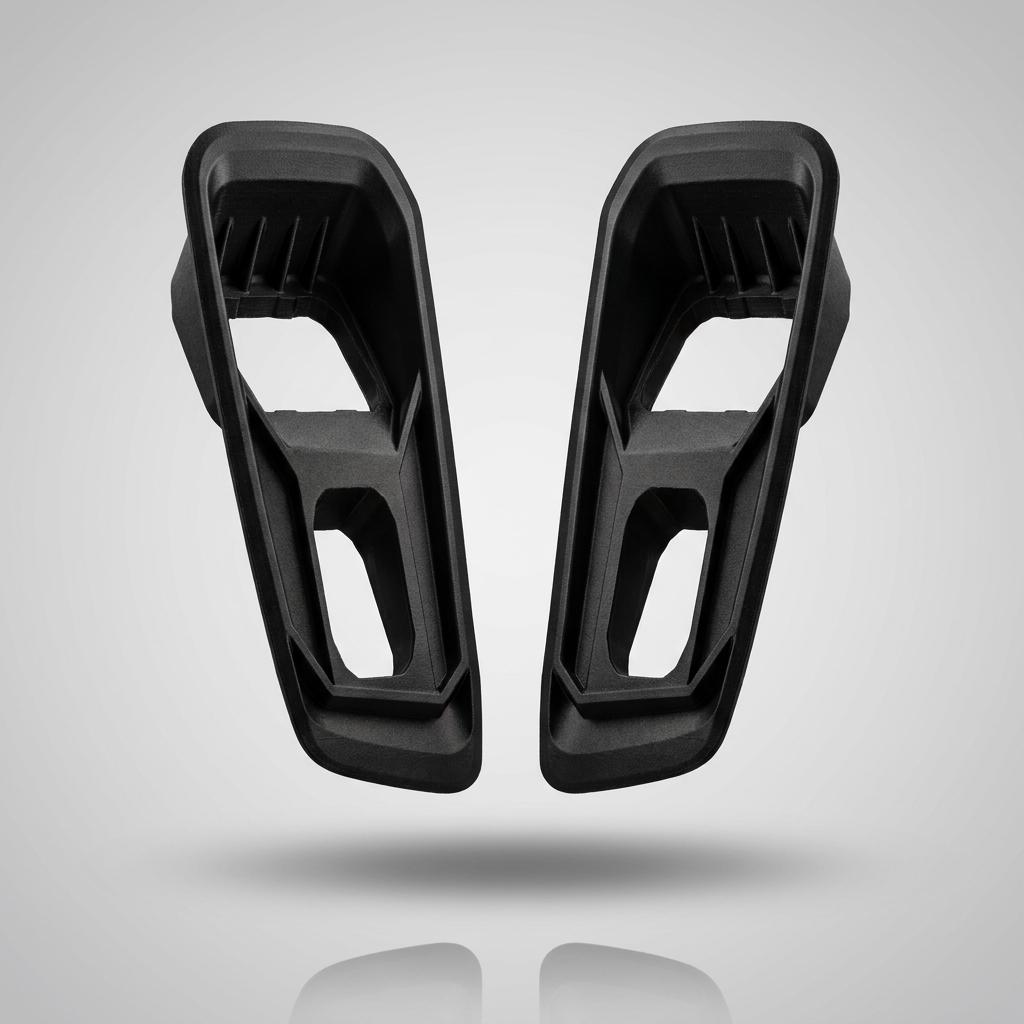

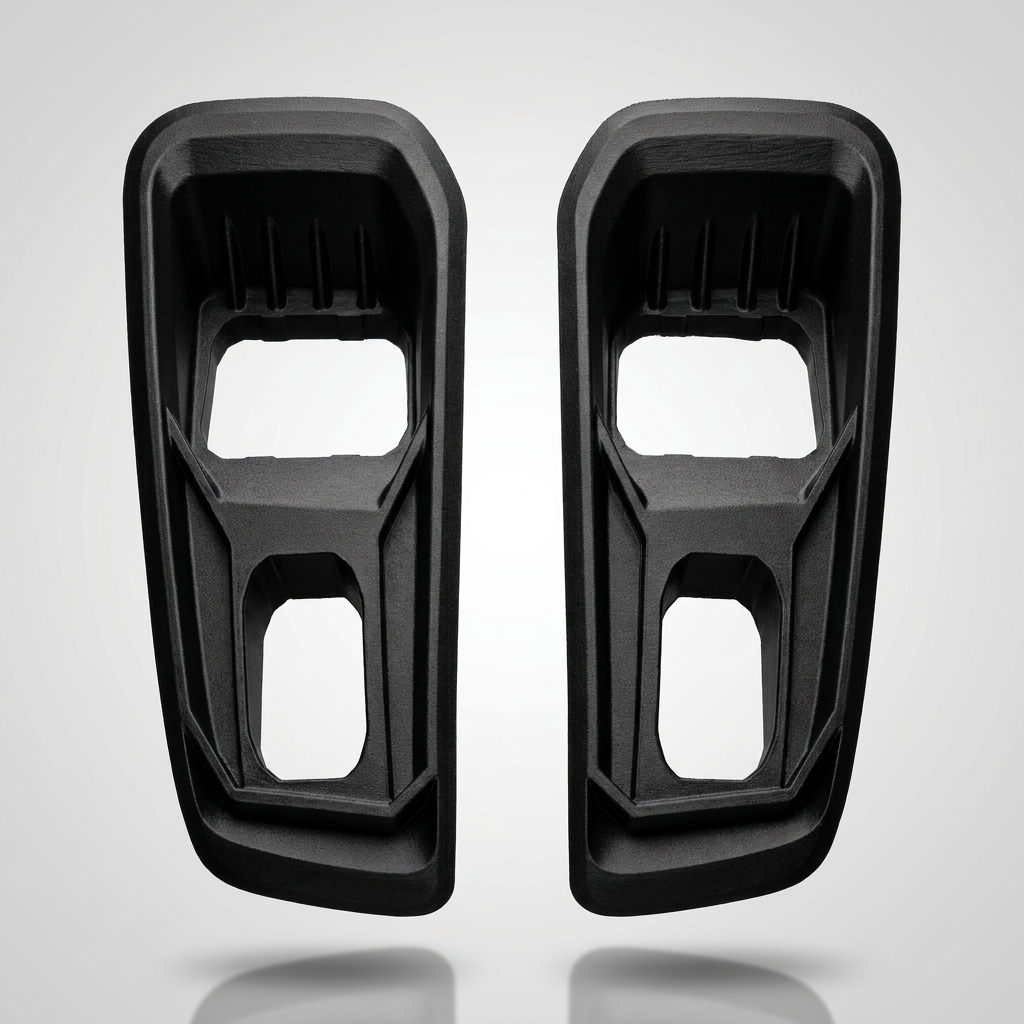

3D-PRINTED SHROUD:

The shroud is printed in ASA-GF — glass-fiber reinforced ASA, an engineering-grade automotive polymer from the same family used for factory exterior trim and mirror caps. It is not PLA or PETG, the common desktop filaments that warp, fade, and go brittle in the sun.

  • ASA-GF (Glass-Fiber Reinforced ASA) — chosen specifically to live outside on the front of a truck
  • UV and weather resistant — won't fade, crack, or break down in sun, rain, or extreme temperatures
  • Fiber-reinforced strength — rigid and dimensionally stable, built for tough off-road use, impact, and vibration
  • OEM-style finish — specifically designed for the 2023+ Ford Super Duty for a clean, seamless, integrated look
  • Heat stable — holds its shape through summer heat and sun load where standard 3D-printed parts soften and sag
