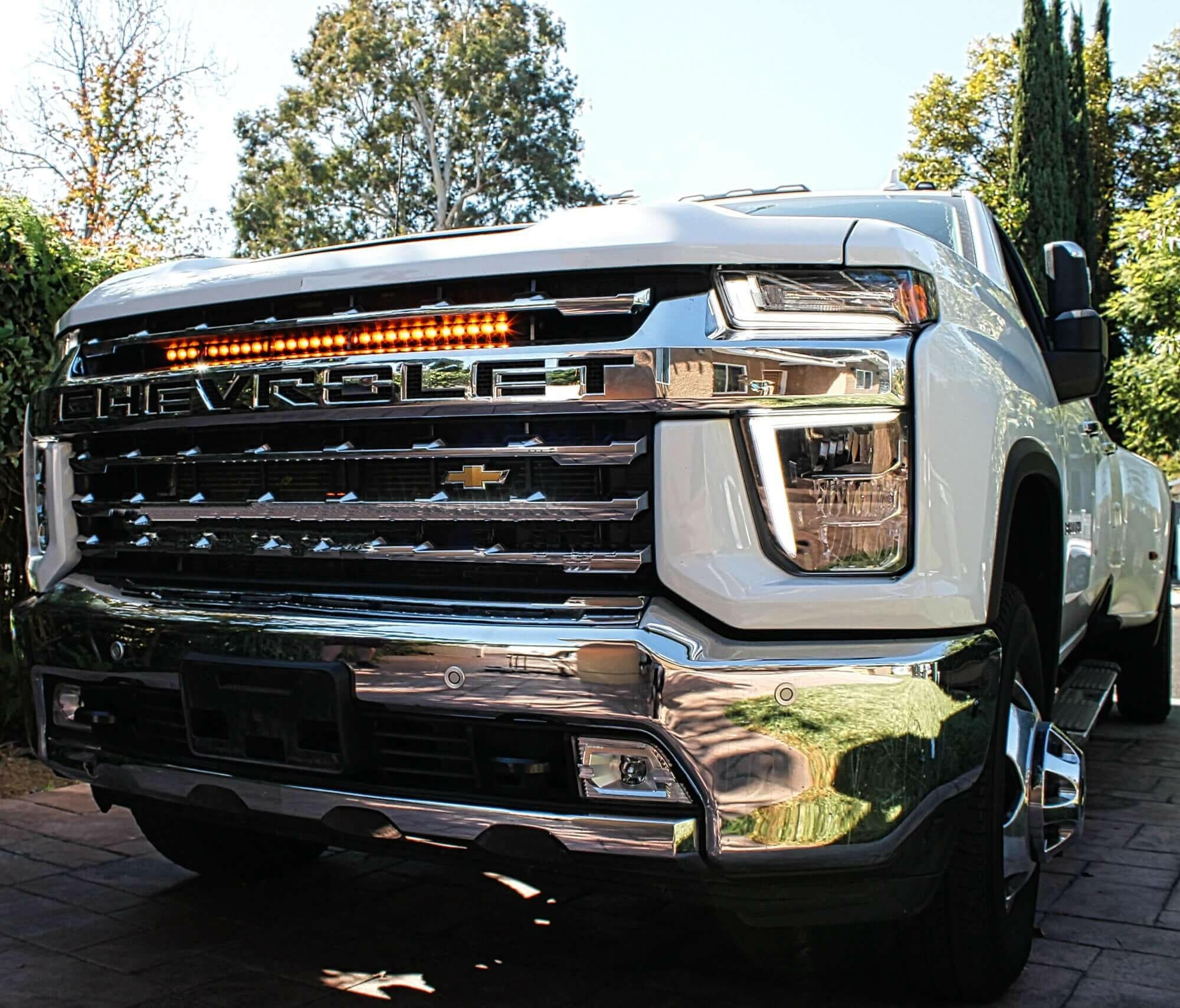

2020+ Chevrolet Silverado 2500/3500HD Single 30in Light Bar

$284.99
By M&R Automotive
Light Bar Color

Fits: 2020–2026 Chevrolet Silverado 2500 3500HD

Trims: High Country, LTZ, LT, Custom, WT

How it installs:

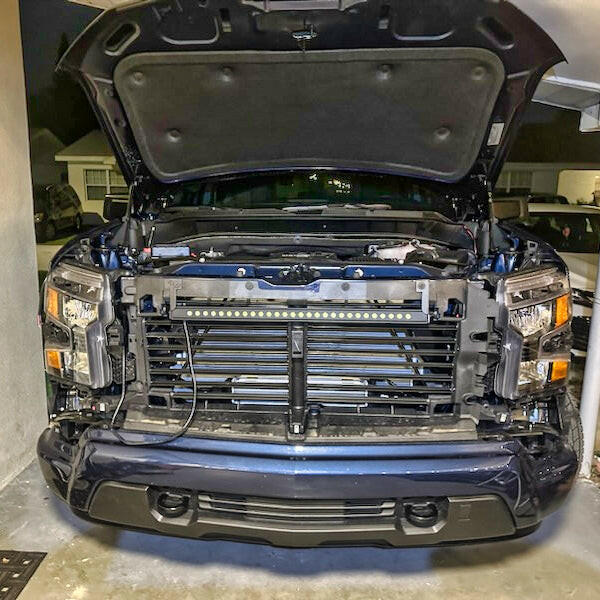

  • Don't need to remove grille or bumper

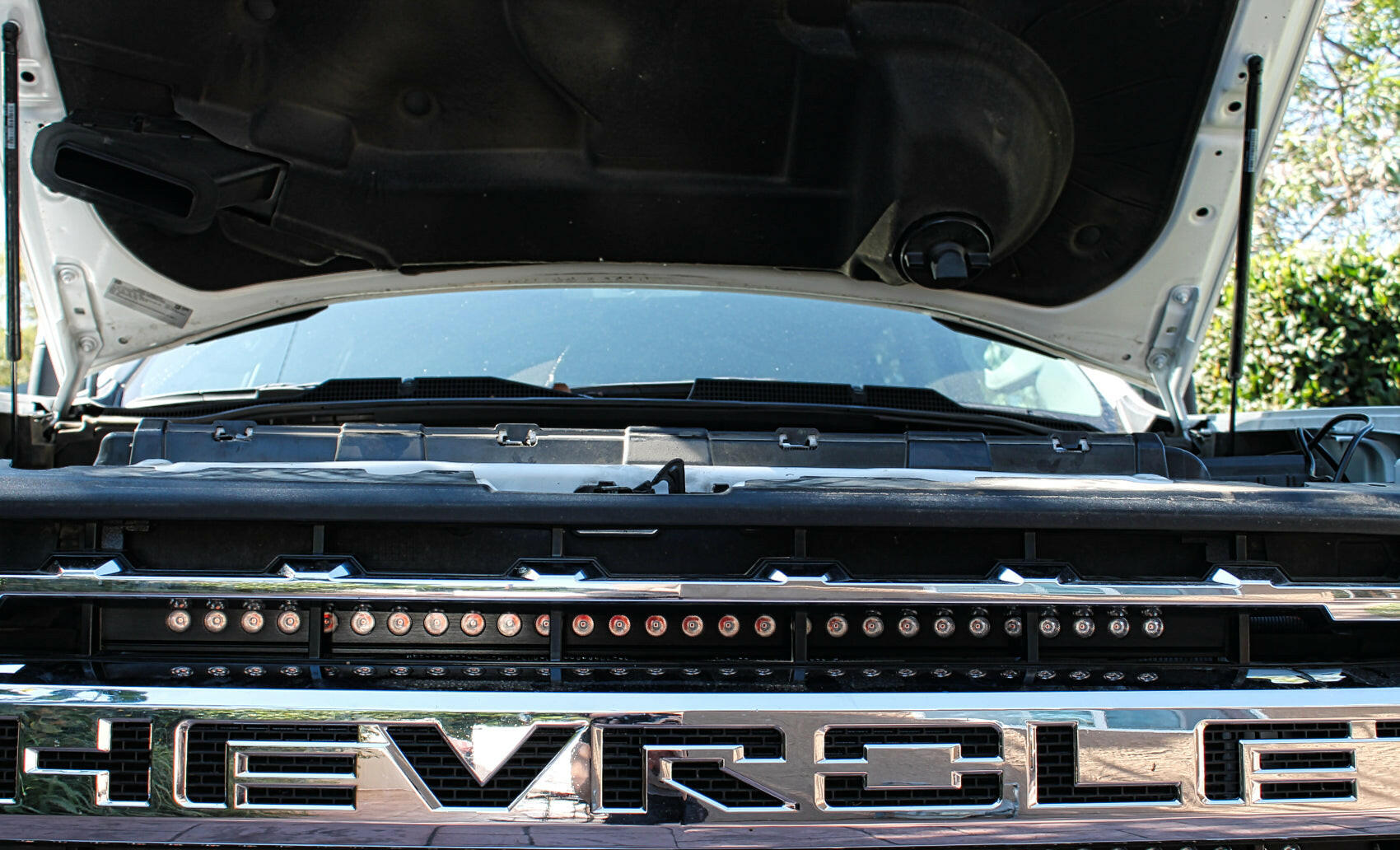

  • Fits only the top half of the grille

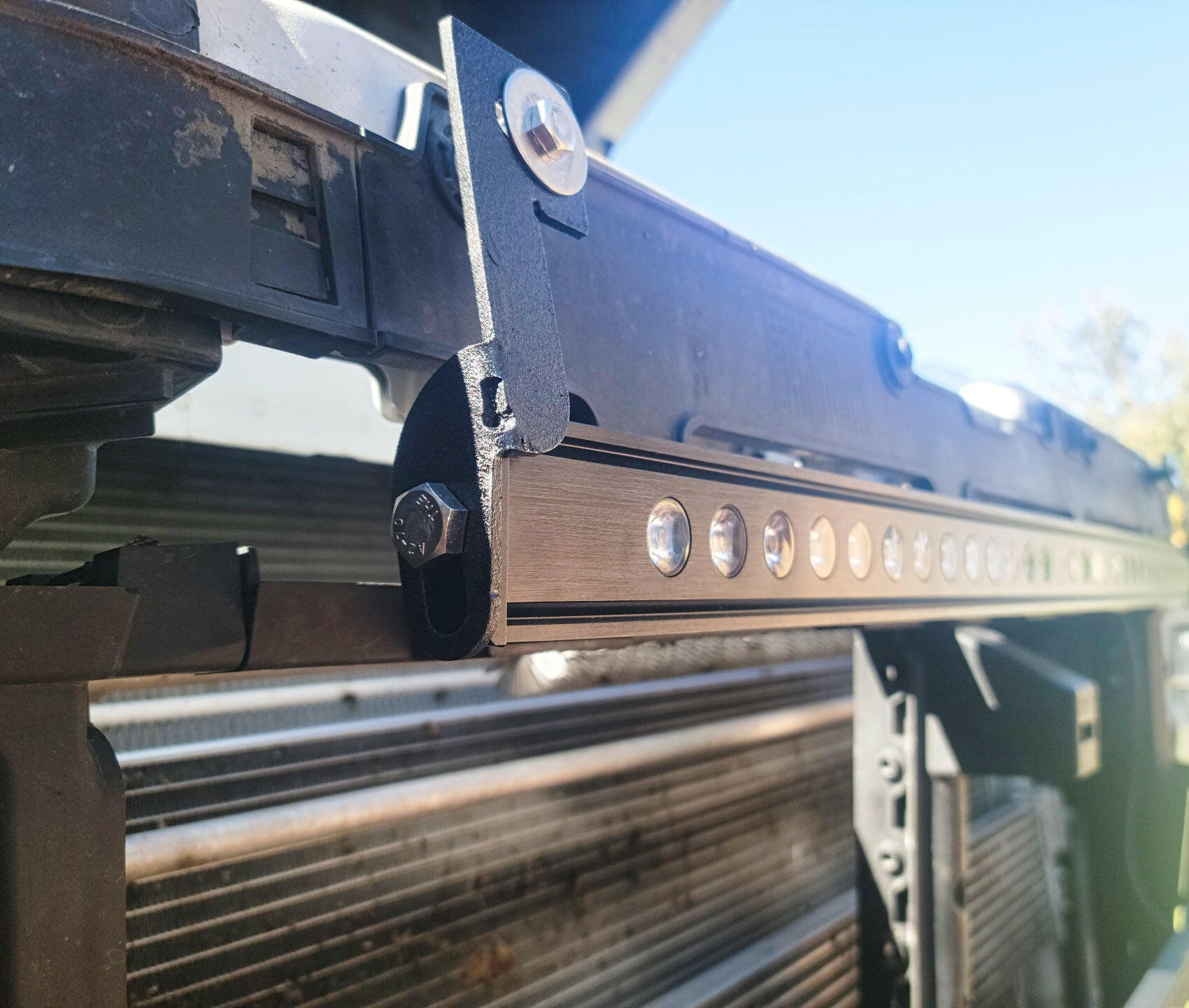

  • Due to grille type variations, M&R designed the mounting bracket on a rail system (see photo). This allows you to move the light bar up or down by about 4in, for maximum light output. You choose the location of your light bar
  • Doesn't interfere with active grille shutters
  • Metal bracket is powder coated black
  • The light bar covers only a small portion of the total grille opening, leaving the surrounding mesh open for full radiator airflow and factory cooling performance
  • No cutting or drilling required. The kit is a complete bolt on using factory openings and hardware

👌M&R promises fitment of the light bar with the grille as pictured. If you have a different type of grille, please reach out with pictures for confirmation.

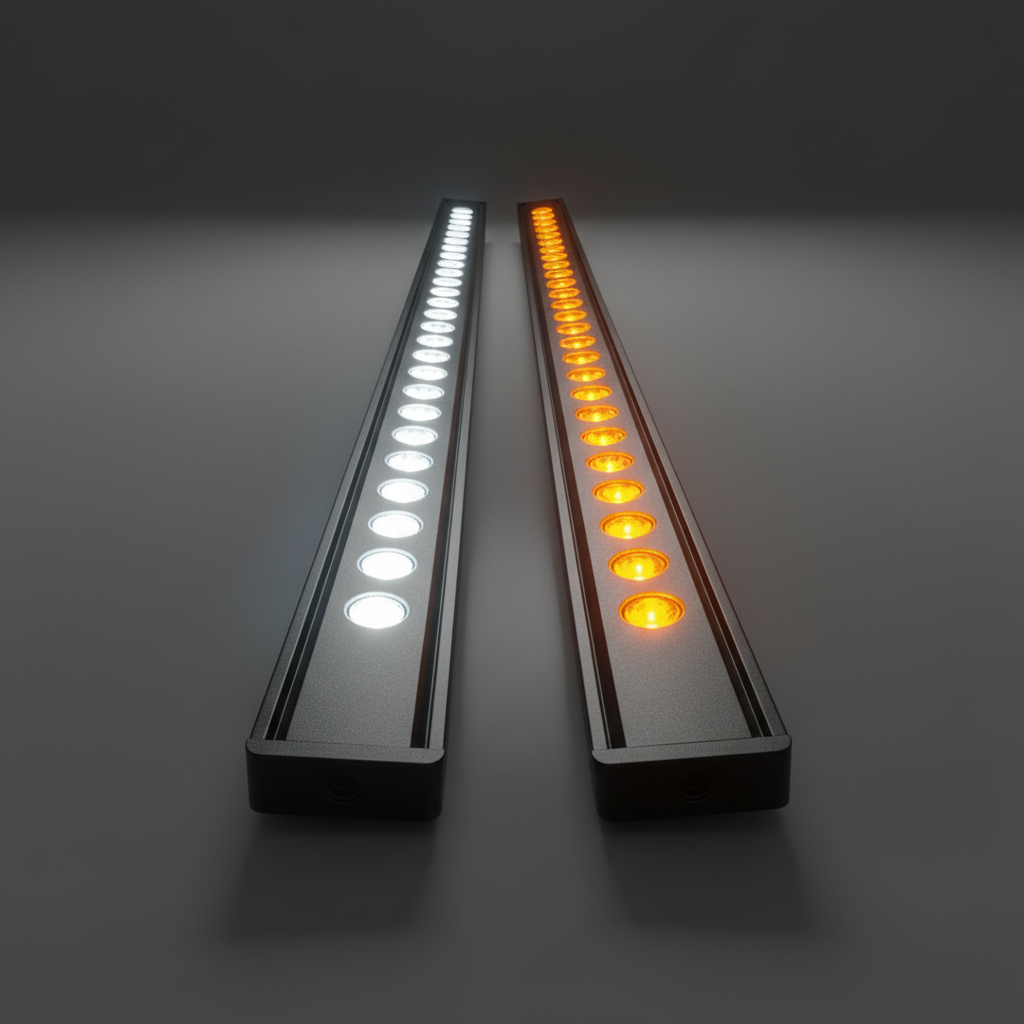

CHOOSE LIGHT OUTPUT COLOR

Every SLIM bar uses a Spot & Flood pattern, blending a focused spot beam with wide flood coverage for a balance between distance and width.

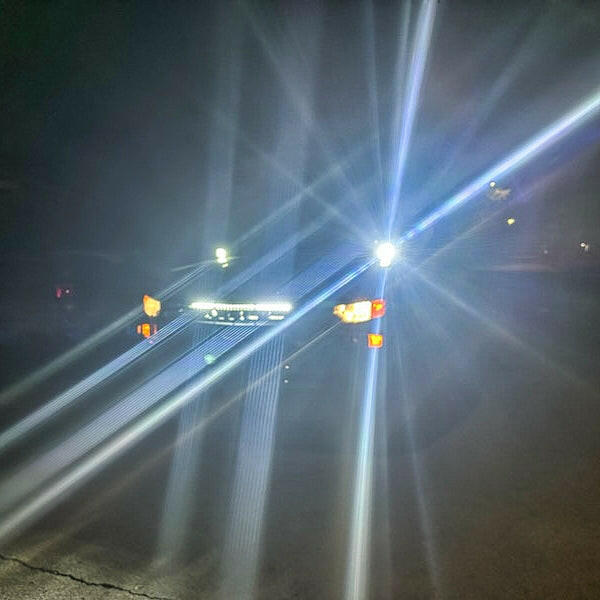

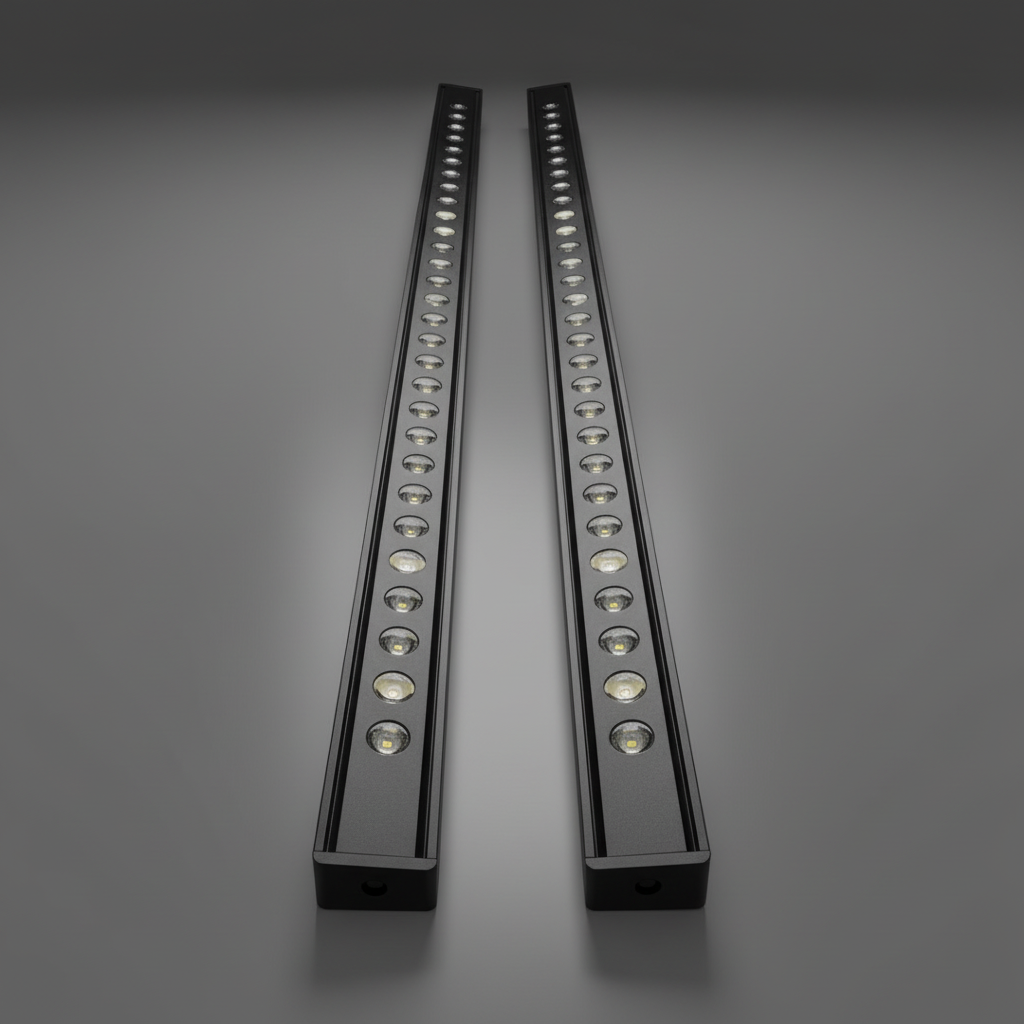

Option 1 — White

Up to 11,760 lumens. Bright, powerful light for any adventure. Off-road use only — the white beam blinds oncoming traffic and isn't street-legal.

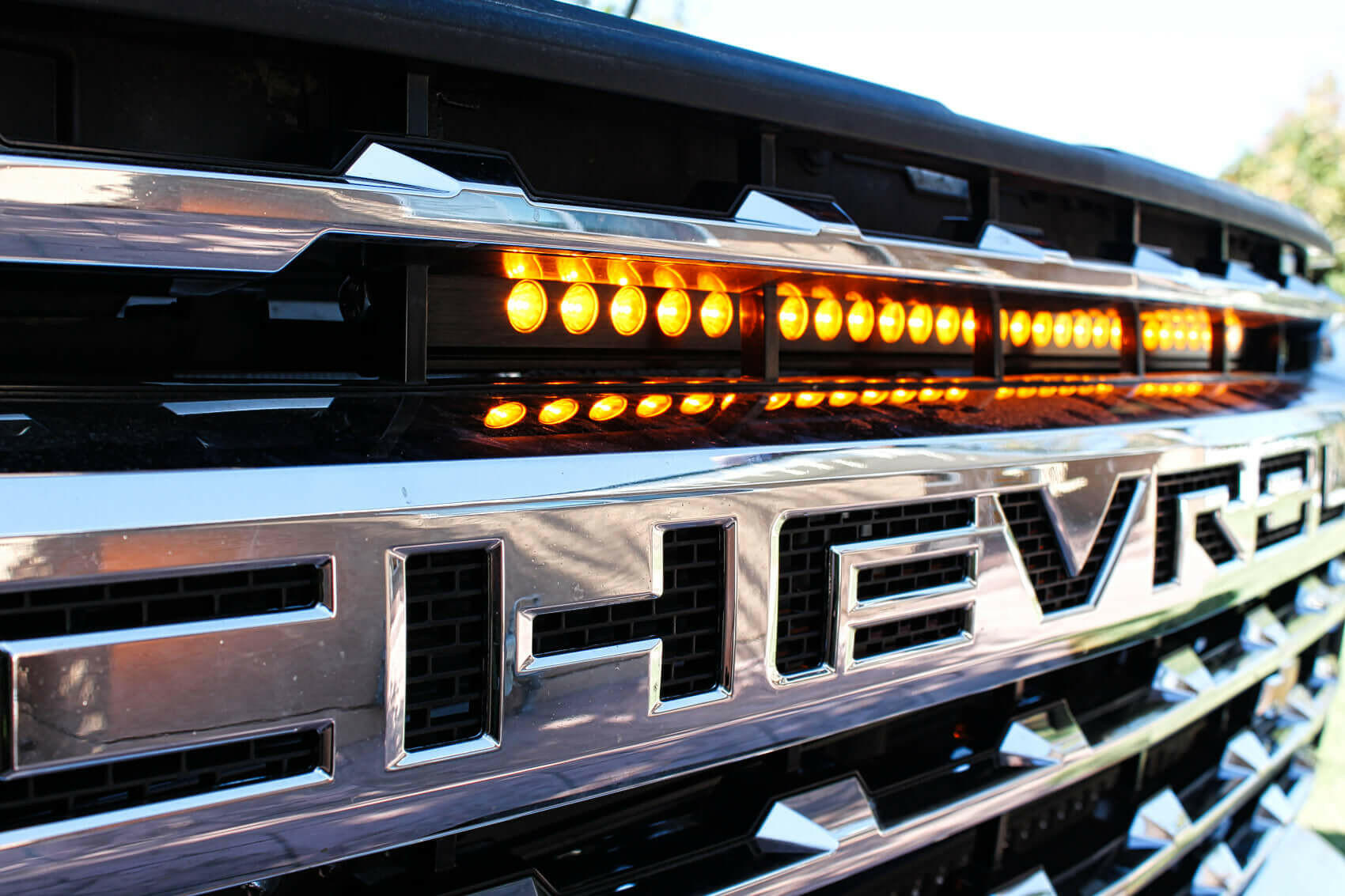

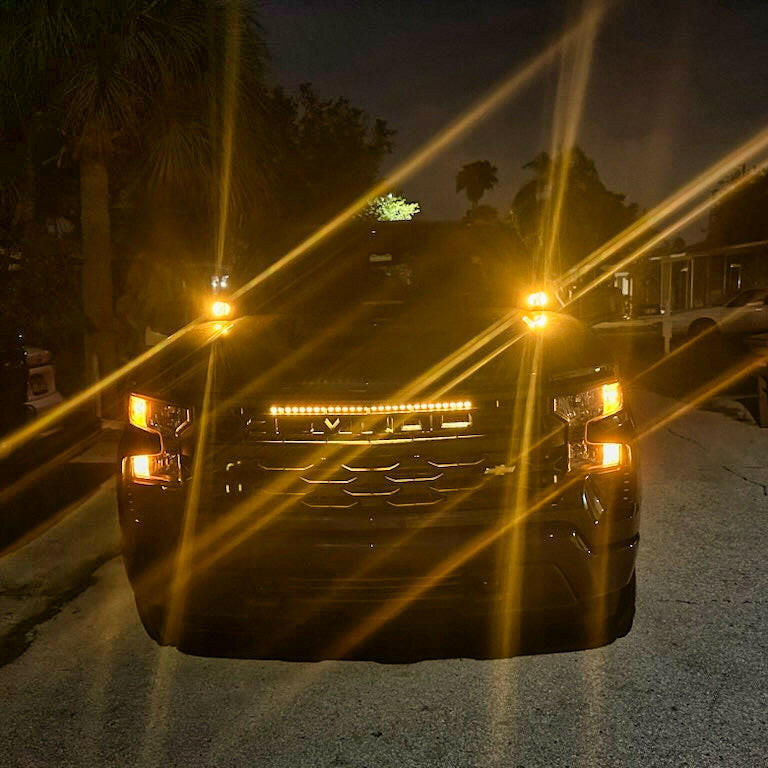

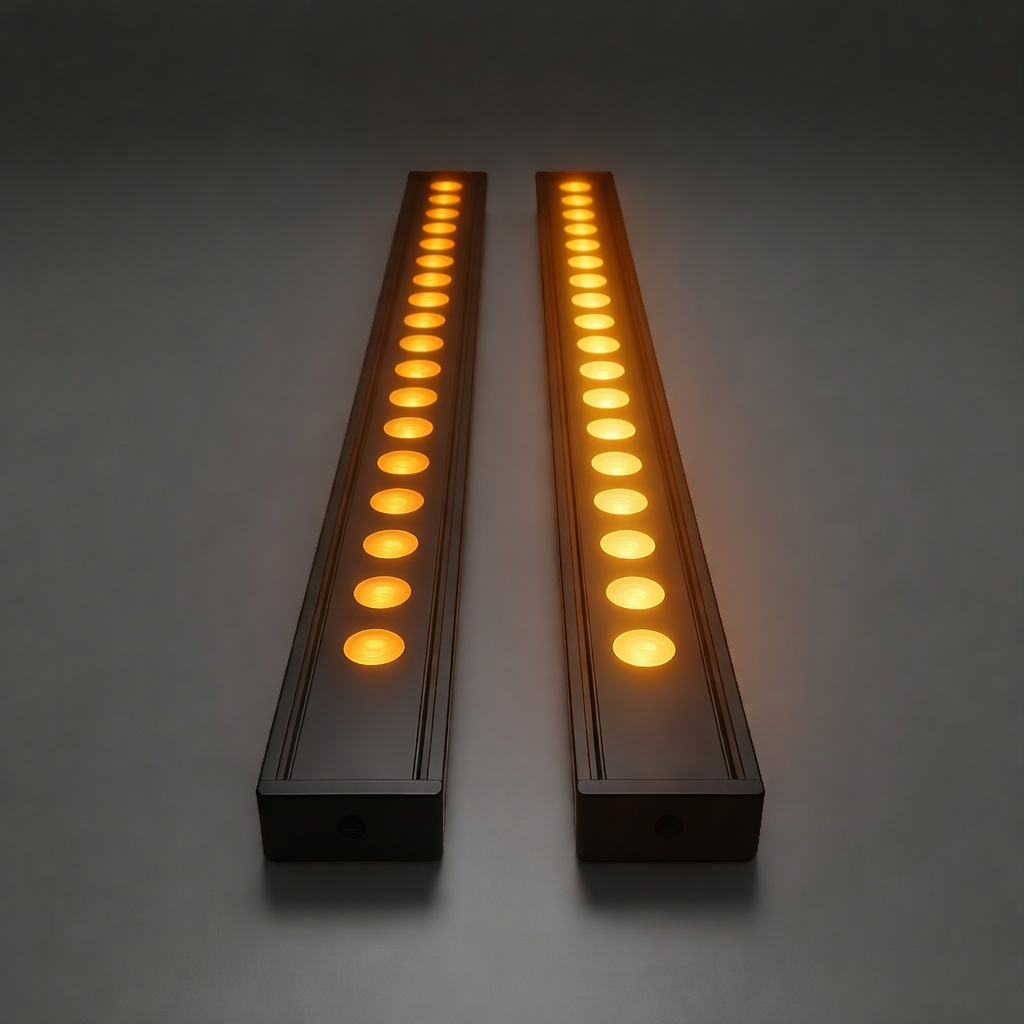

Option 2 — Amber

Up to 5,500 lumens. Cuts through dust, fog, snow, and rain far better than white light. Ideal for poor conditions. Off-road use only — the amber beam blinds oncoming traffic and isn't street-legal.

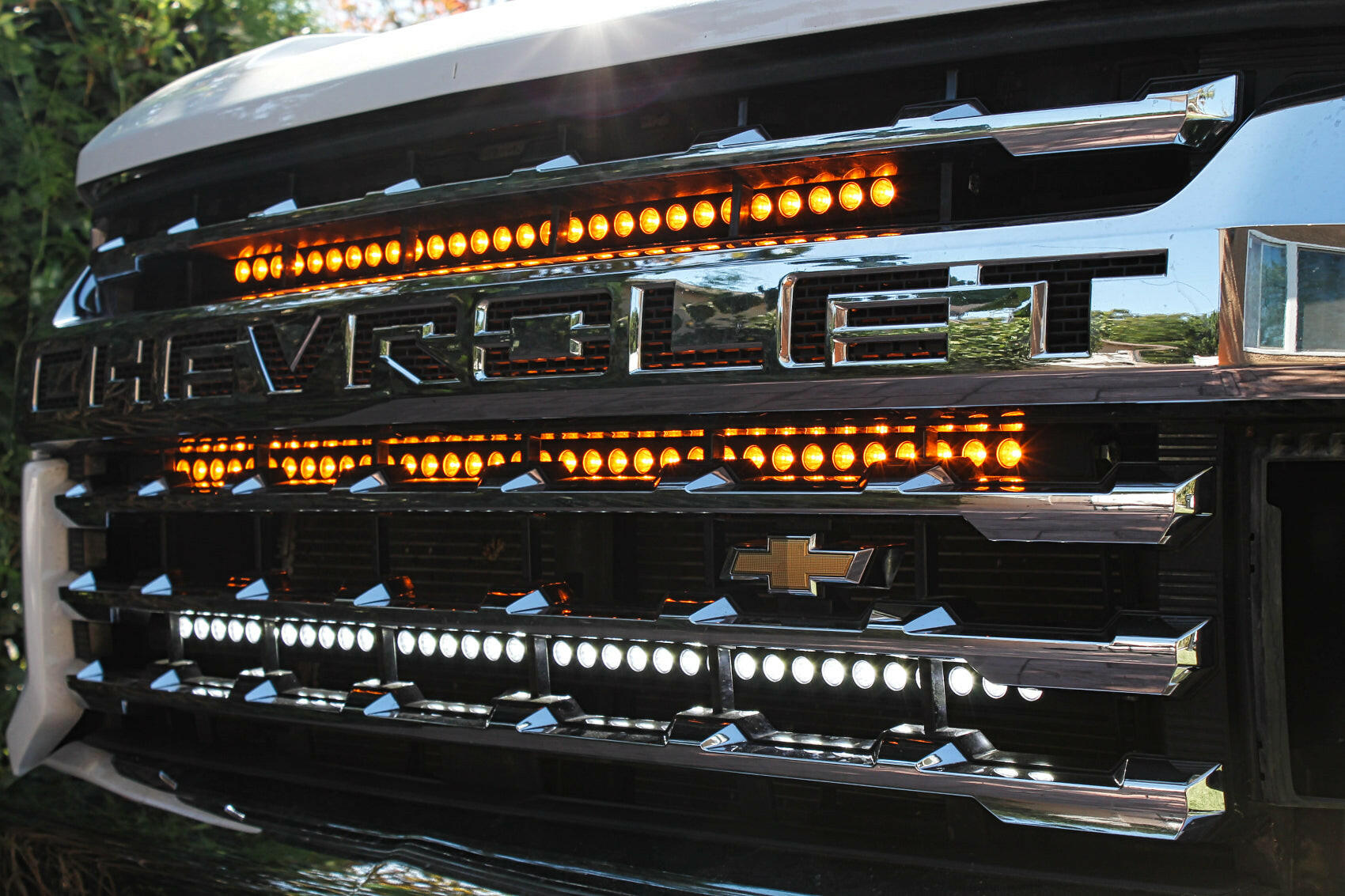

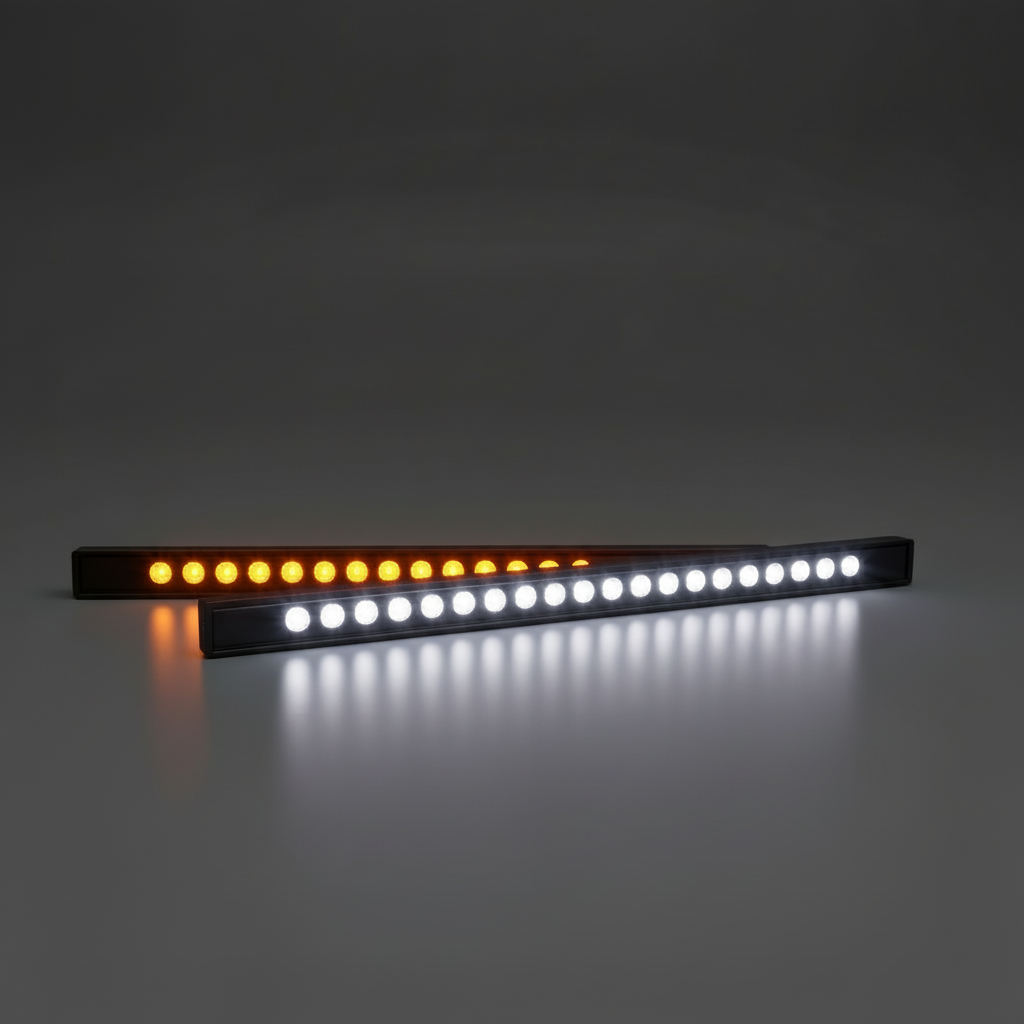

Option 3 — Dual Function: White + Amber DRL

Full white beam (same as Option 1), plus an amber daytime running light backglow. Doesn't give off much light — just a bold amber glow that makes your vehicle stand out on the road. Off-road use only — the white main beam blinds oncoming traffic and isn't street-legal.

AMP DRAW @ 12V (PER BAR)
White6.30A
Amber4.70A
Amber DRL (dual function only)0.36A

BUILD QUALITY:

  • Reflector-style optics with CREE XT-E LED chips for consistent, efficient output
  • Housing is UV black powder coated to protect against fading, corrosion, and weather exposure
  • Rated for a 50,000 hour lifespan
