2.0" Single Tube 4 Hole Mounting Plates

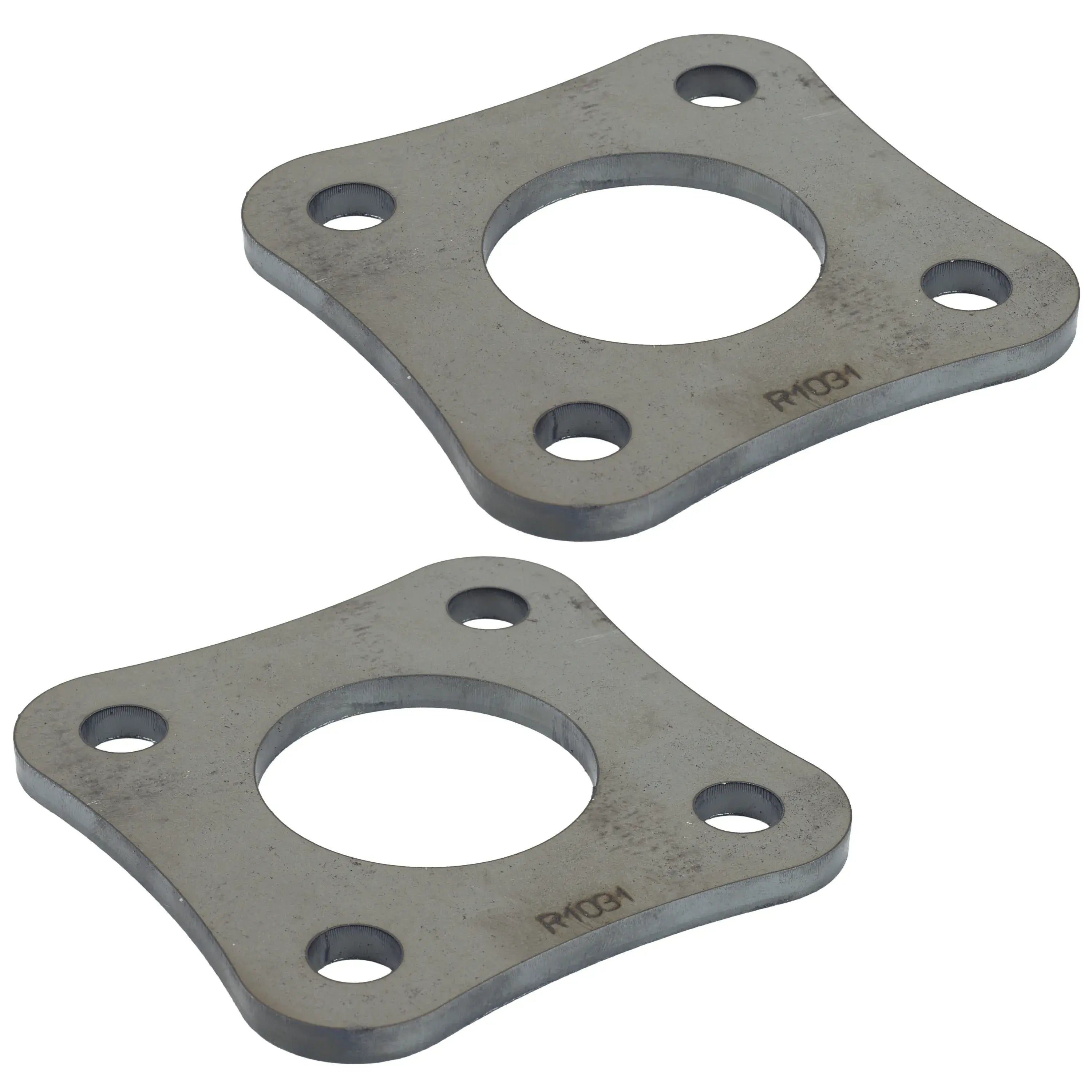

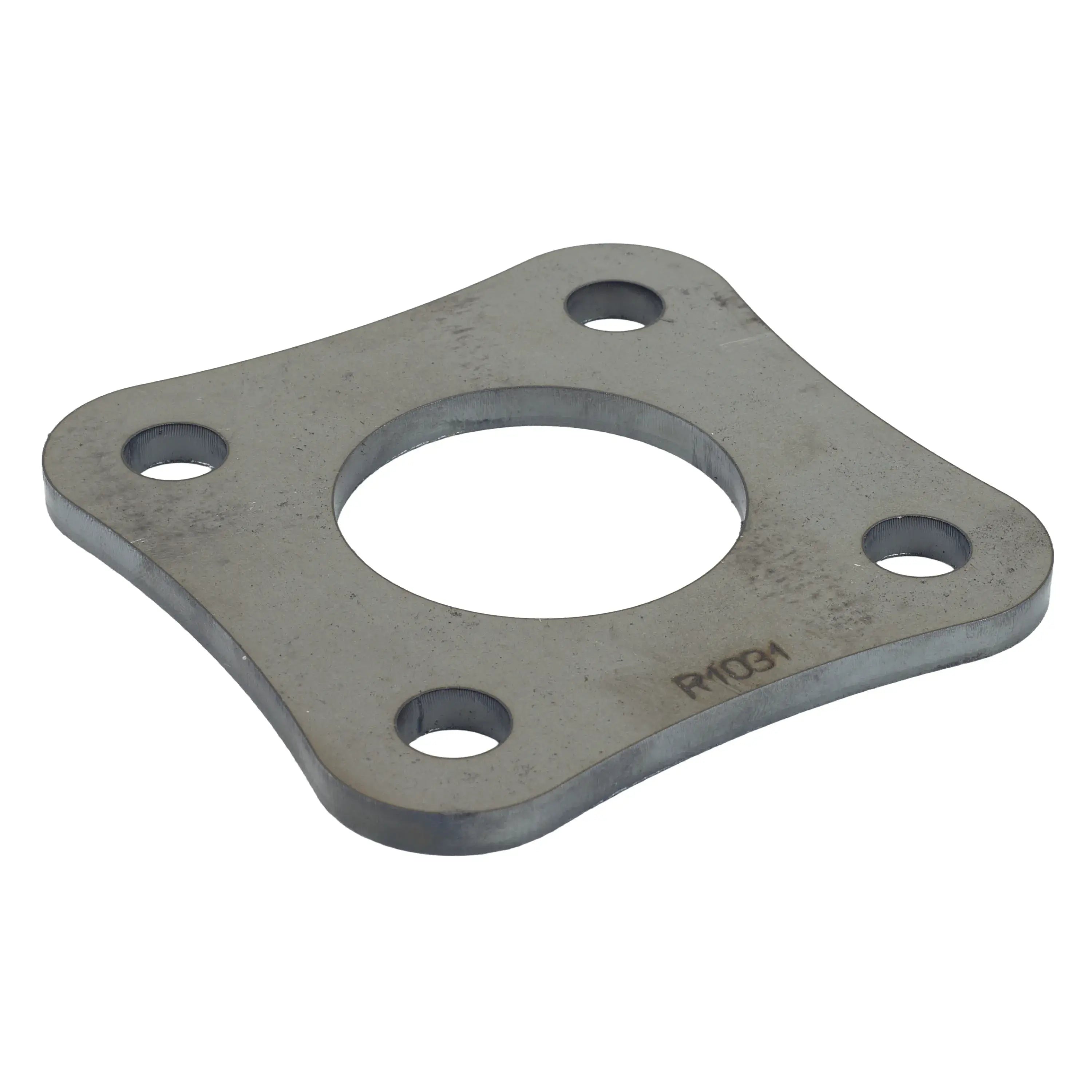

2.0" Single Tube 4 Hole Mounting Plate, Pairs

Heavy-duty tie-in for cages, rockers, and structural tubing.

This mounting plate is a rugged solution for securely joining cage structures or rocker panels, especially in off-road or race vehicle builds. Designed with a 2.0" center hole, it’s commonly used as a cage foot mount or joining plate where strength in high-shear environments is critical. These are often placed on both sides of the floor during cage installation—pass the tube through at least 2/3 of the way, then weld inside and out for maximum strength.

Cut from 1/4" HRPO steel and drilled for 5/8" bolts, these offer a secure, heavy-duty connection point without compromise. Whether you're reinforcing structural tubing or building a secure cage foundation, these plates give you the peace of mind that comes with serious hardware.

Key Features

• Part Number: R1031
• Material: 1/4" HRPO steel
• Tube Hole Diameter: 2.0"
• Bolt Hole Diameter: 5/8" (0.625")
• Common Uses: Cage-to-floor tie-ins, rocker panel reinforcement, structural tube mounting
• Application: Designed for maximum shear strength during impacts
• Made in the USA

Sold in pairs
