CS144 Alternator Swap Harness 1993–1997 Toyota Land Cruiser / LX 450 (1FZ-FE)

If you’re upgrading your 80 Series to a CS144 high-output alternator, this harness makes the wiring portion of the swap clean, simple, and reliable.

The factory charging system on the 1993–1997 Land Cruiser and LX450 uses a Toyota oval 3-pin connector (IG–S–L). Most CS144 alternators use a GM-style regulator plug, which usually means cutting and splicing your factory wiring. This plug-and-play adapter eliminates the guesswork and lets you connect your high-output alternator the right way — no hacked wiring under the hood.

Whether your build includes a winch, dual batteries, lighting, onboard air, a fridge, or a full overland electrical system, a CS144 upgrade helps your 80 Series keep up with modern electrical demands — especially at idle.

Built in-house by TEQ Offroad for Land Cruiser owners who actually use their rigs. Finished in classic Toyota retro colors as a small nod to the heritage — even when you’re running GM charging power.

Features

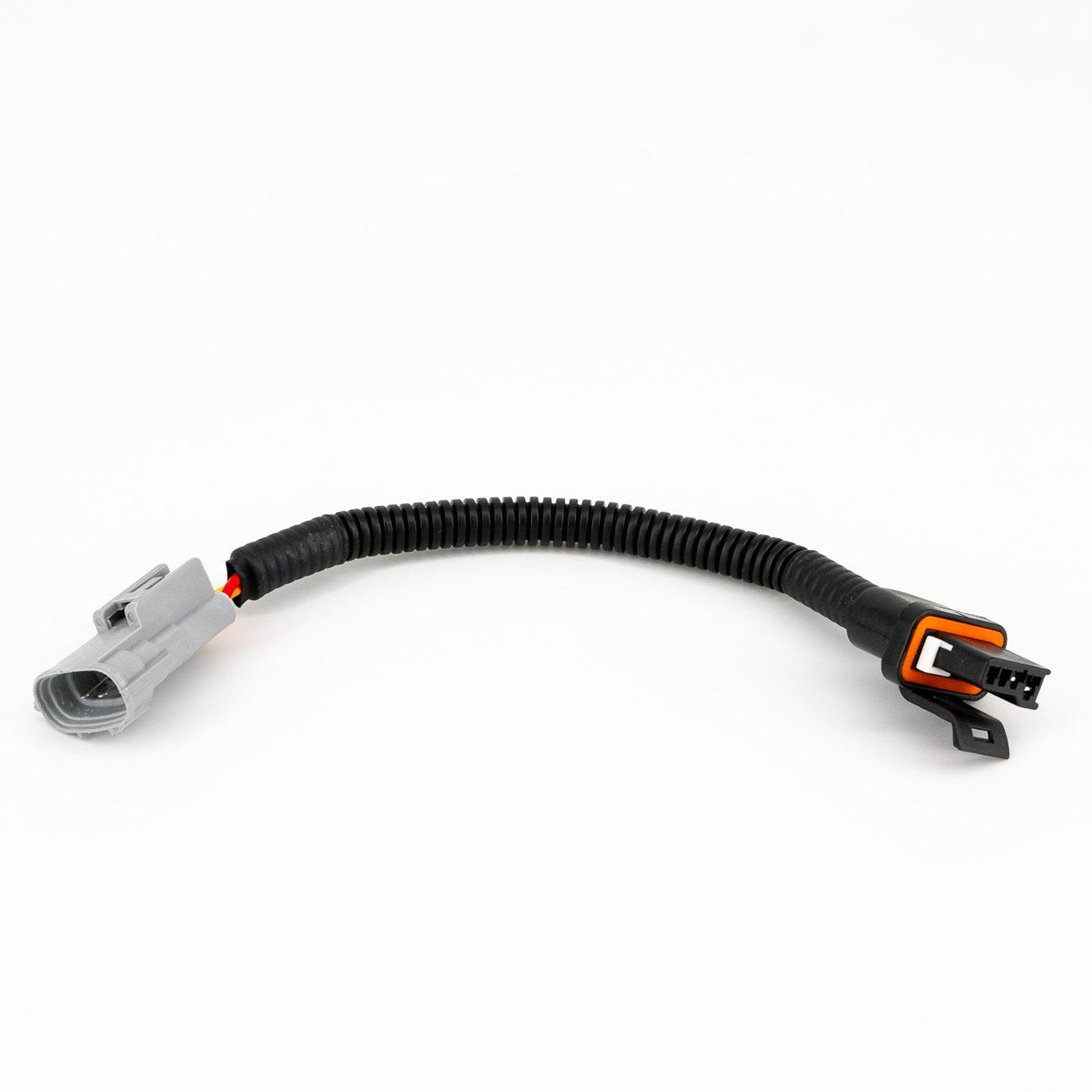

• Plug-and-play CS144 alternator adapter harness

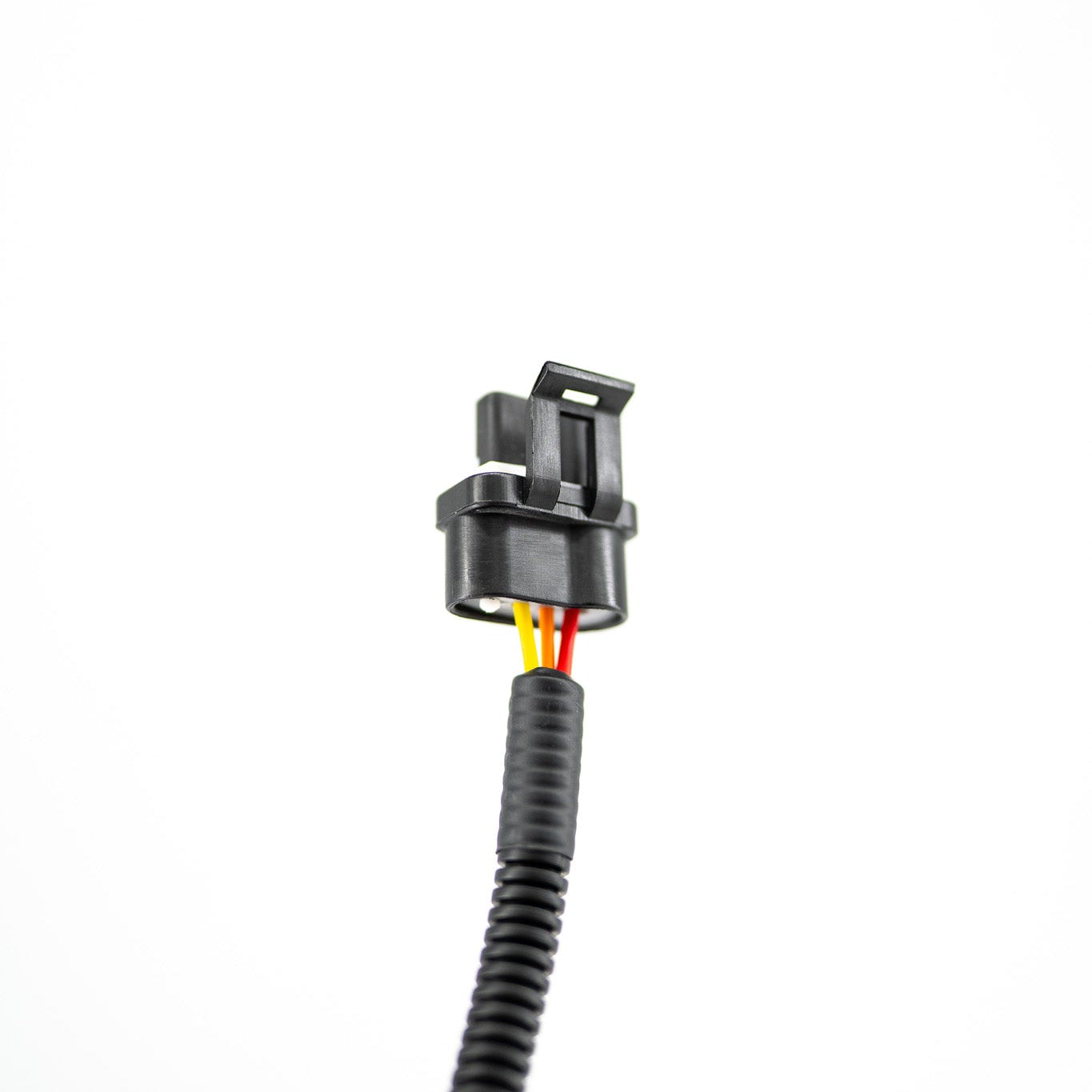

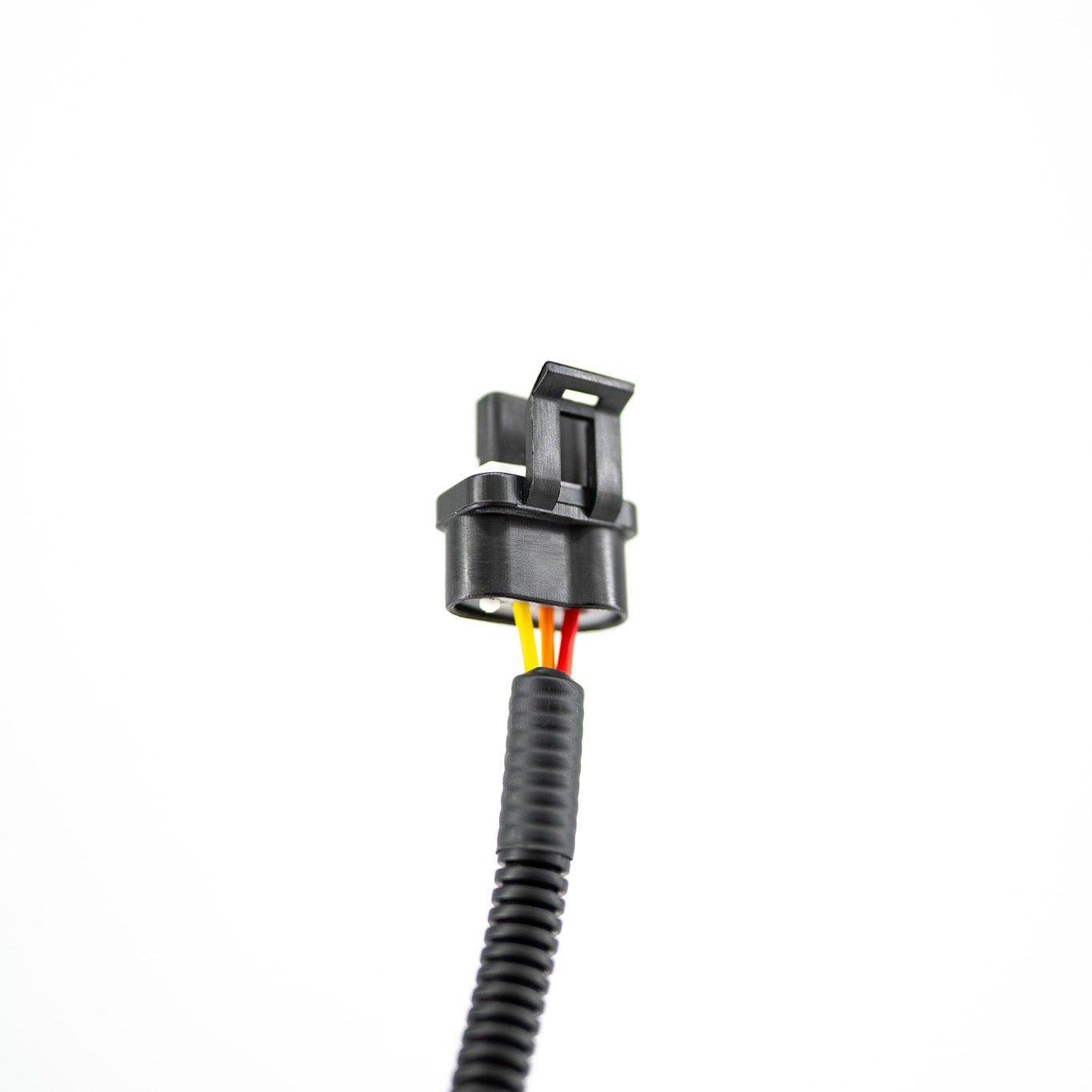

• Converts Toyota 3-pin (IG–S–L) to GM CS144 regulator connector

• No cutting or splicing required

• Clean, factory-style installation

• Built for off-road and high-vibration environments

• Ideal for high-output alternators (140–200+ amps)

Vehicle Fitment

1993–1997 Toyota Land Cruiser (FZJ80)

1996–1997 Lexus LX450

• 1FZ-FE 4.5L inline-6

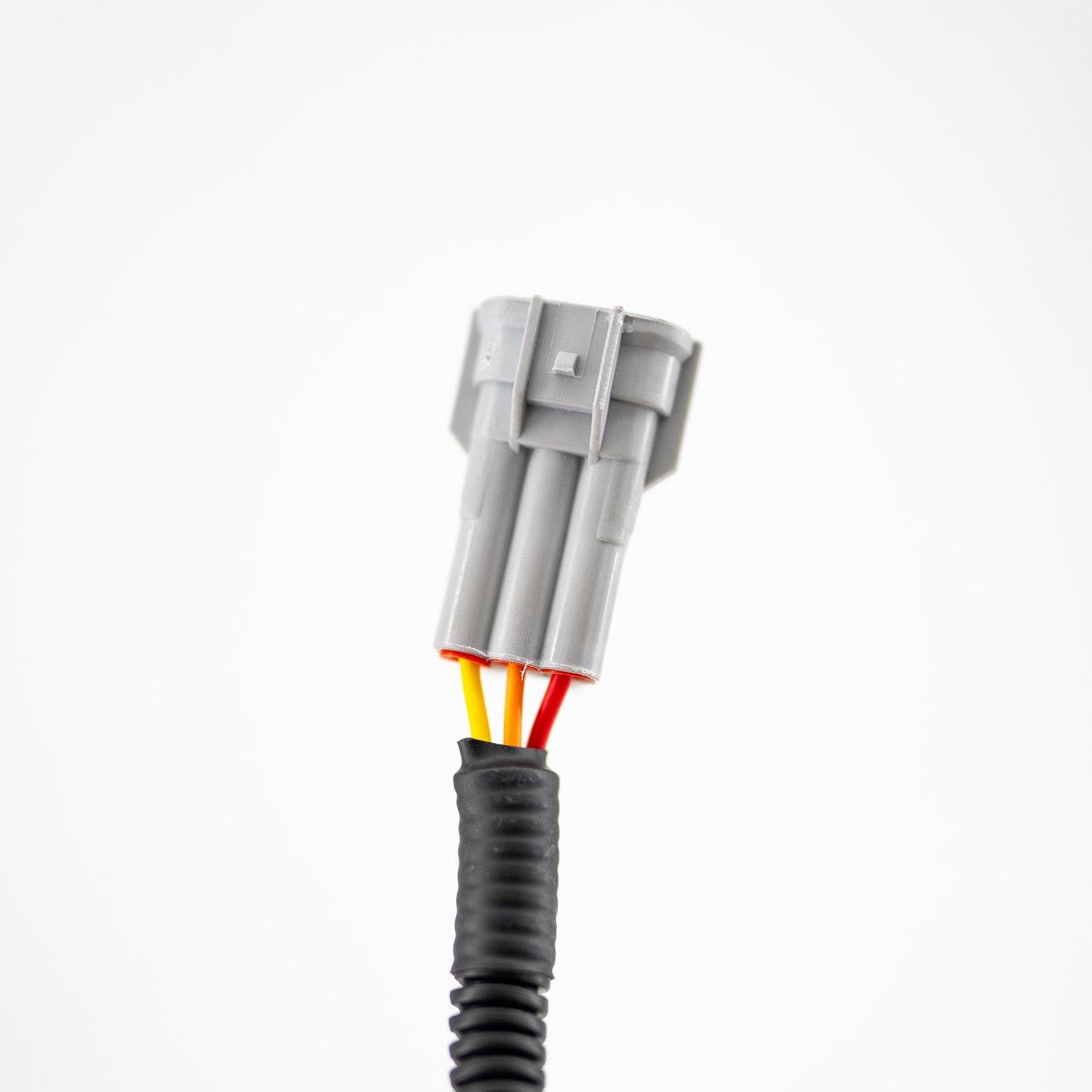

• Requires factory oval 3-pin Denso alternator connector

Does not fit 1991–1992 FJ80 (3F-E).

Note

This harness covers the wiring portion of the CS144 swap. Mounting brackets and pulley alignment modifications may vary depending on your alternator setup.

Why Upgrade to a CS144?

The factory alternator is typically 80–100 amps. Once you add modern accessories, charging performance — especially at idle — becomes a limitation.

A CS144 provides:

• Higher output at idle

• Support for winches and dual battery systems

• Stable voltage for overland accessories

• Proven durability for expedition and off-road use

Built for Land Cruiser Owners

At TEQ Offroad, we design parts the way we’d want them on our own trucks — simple, durable, and made to work the first time. No shortcuts. No unnecessary complexity. Just a clean solution for a common 80 Series charging upgrade.
